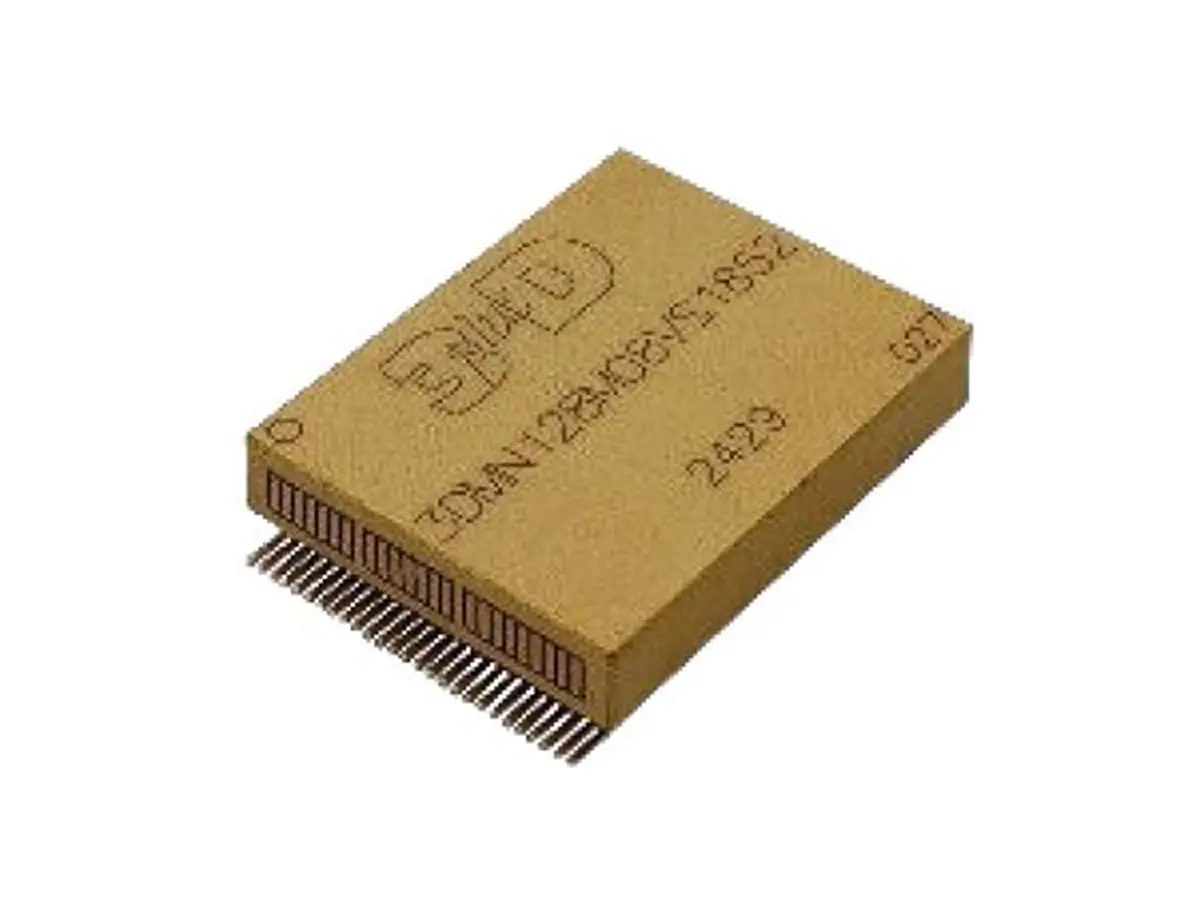

MNEMOSYNE – 128 Mb 3.3 V parallel (3DMN128M08VS1852)

Categories: RAD HARD / RAD TOLERANT, Memories, MNEMOSYNE Brand: 3D Plus

It is organized as a single bank of 16,777,216 words of 8 bits selectable with CE_N signal. This native latch-up immune memory built on a FDSOI process, is radiation hardened by design. Additional protection against transient effects is provided by an embedded controller with ECC.

The module package in a SOP 54 is available in a wide temperature range and various screening options up to space grade.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Key Features

Performances

Density: 128 Mbit
Supply: 1.8 V (core) and 3.3 V (I/O)
EEPROM protocol
On chip latches: address, data, CE_N, OE_N, WE_N
Access time: 250 ns (max)
100,000 P/E cycles
20 years data retention
Hardware reset pin
Temperature range: -55°C to +125°C
ITAR free

Space Qualifications

Up to ESA Class 1,
Up to NASA Level 1,
High Longevity and Reliability,
Flight heritage: 3D PLUS expertise in space memories for more than 20 years

The given information about the MNEMOSYNE — 128 Mb 3.3 V parallel is preliminary. Please contact the MSA-Components Team for further information on this product.

Radiation Tolerance

TID > 100 krad(Si)
SEL LET > 80 MeV.cm²/mg
SEU LET > 60 MeV.cm²/mg
SET LET > 60 MeV.cm²/mg
SEFI LET > 60 MeV.cm²/mg

The given information about the MNEMOSYNE — 128 Mb 3.3 V parallel is preliminary. Please contact the MSA-Components Team for further information on this product.

Description

3DMN128M08VS1852 is a high performance 128 Mbit Non-Volatile Memory with parallel interface operating at 3.3 V.

Application

FPGA configuration memory
Processors boot/program memory

The given information about the MNEMOSYNE — 128 Mb 3.3 V parallel is preliminary. Please contact the MSA-Components Team for further information on this product.

More information

MNEMOSYNE — Radhard Memory for Space

Downloads

3D Plus Memory Module P/N Decoder

Manufacturer Info

www.3d-plus.com
