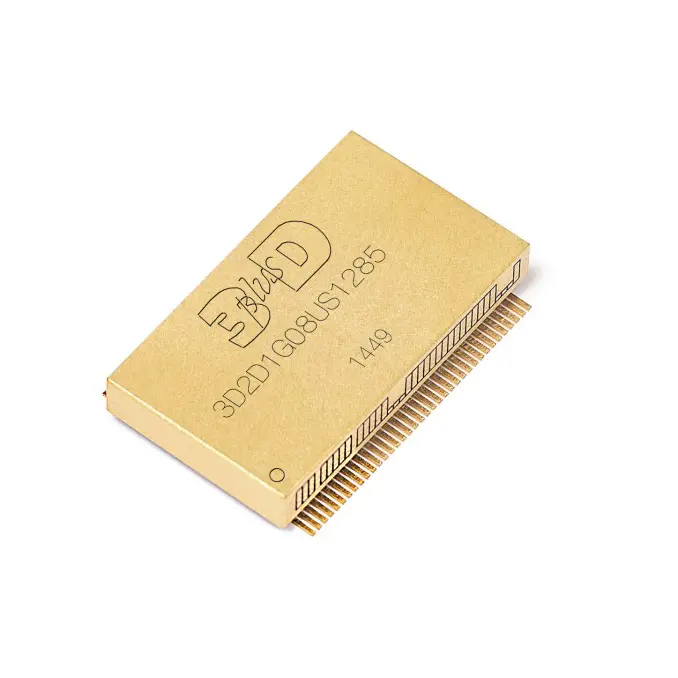

1 Gbit DDR2 SD RAM (3D2D1G08US1285)

• Organized as 128M × 8 bits based on four 1 Gbit DDR2 SDRAMs
• Clock frequency up to 333 MHz
• Power supply: +1.8 V ± 0.1 V
• SSTL_18 interface
• Burst read/write operation and burst read/single write operation capability
• Burst Length (BL): 4 and 8
• Burst Type (BT):
  • Sequential (BL = 4, 8)
  • Interleave (BL = 4, 8)
• Programmable CAS latency (CL): 3, 4, and 5
• Auto precharge option for each burst access
• Refresh cycles: 8192 refresh cycles / 64 ms
• Two refresh modes: Auto Refresh and Self Refresh
• Available temperature range:
  • 0°C to +70°C
  • -40°C to +85°C
  • -40°C to +105°C
• Available with screening option for high-reliability applications (Space, etc.)

Beschreibung

The 3D2D1G08US1285 is a high-speed highly integrated DDR2 Synchronous Dynamic Random Access Memory con­taining 1.073. 741.824 bits.
