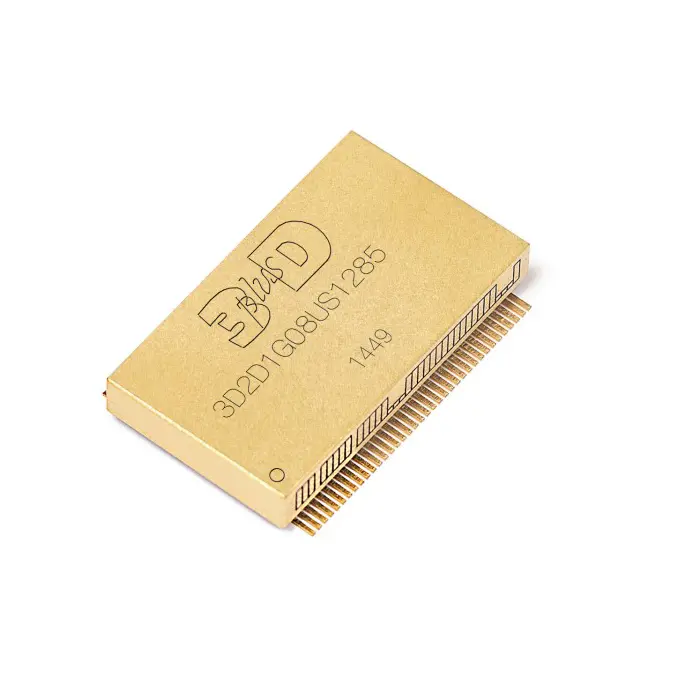

1 Gbit DDR2 SD RAM (3D2D1G08US1285)

Categories: Memories, DDR, DDR2, SDRAM Brand: 3D Plus

The 8-bit interface and is selected with specific #CS, CKE, #CK and CK.

Off-Chip-Driver Impedance Adjustment and On-Die-Termination for better signal quality.

It is particularly well suited for use in high reliability, high performance and high density system applications, such as solid state mass recorder, server or workstation.
The 3D2D1G08US1285 is packaged in a 74 pin SOP.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Organized as 128M × 8 bits based on four 1 Gbit DDR2 SDRAMs
Clock frequency up to 333 MHz
Power supply: +1.8 V ± 0.1 V
SSTL_18 interface
Burst read/write operation and burst read/single write operation capability
Burst Length (BL): 4 and 8
Burst Type (BT):
- Sequential (BL = 4, 8)
- Interleave (BL = 4, 8)
Programmable CAS latency (CL): 3, 4, and 5
Auto precharge option for each burst access
Refresh cycles: 8192 refresh cycles / 64 ms
Two refresh modes: Auto Refresh and Self Refresh
Available temperature range:
- 0°C to +70°C
- -40°C to +85°C
- -40°C to +105°C
Available with screening option for high-reliability applications (Space, etc.)

Description

The 3D2D1G08US1285 is a high-speed highly integrated DDR2 Synchronous Dynamic Random Access Memory containing 1.073. 741.824 bits.

Downloads

3D Plus Memory Module P/N Decoder

Manufacturer Info

www.3d-plus.com
