The Magneto-resistive Random Access Memory (MRAM) uses magnetic polarization rather than electric charges to store data bits. Therefore, the MRAM acts like a SRAM (rapid data buffers) while being nonvolatile like a Flash.

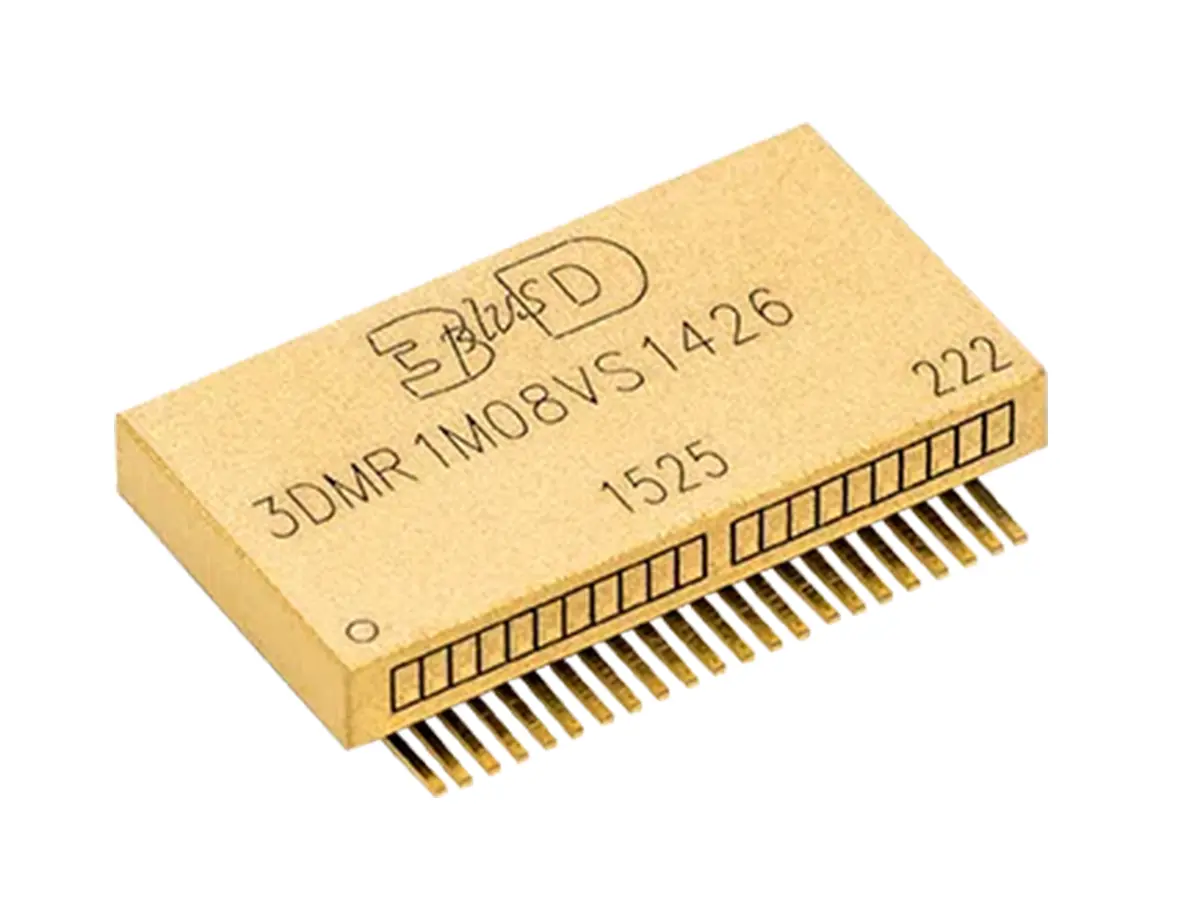

The 3DMR1M08VS1426 is a high–speed, highly integrated 1 Mbit MRAM with a 8-bit interface. The 1 Mbit bank can be accessed by activating the associated control signals: #WE, #CE, #OE.
This MRAM is a cost-effective solution for processor’s boot, program ROM and FPGA configuration memory. It can be used in variety of space applications such as: sciences and deep space missions, navigation, launchers and manned vehicles, etc.
The module packaged in a SOP 44 is available for Commercial, Industrial or Specific temperature range. It is also available with screening options up to space grade level.
