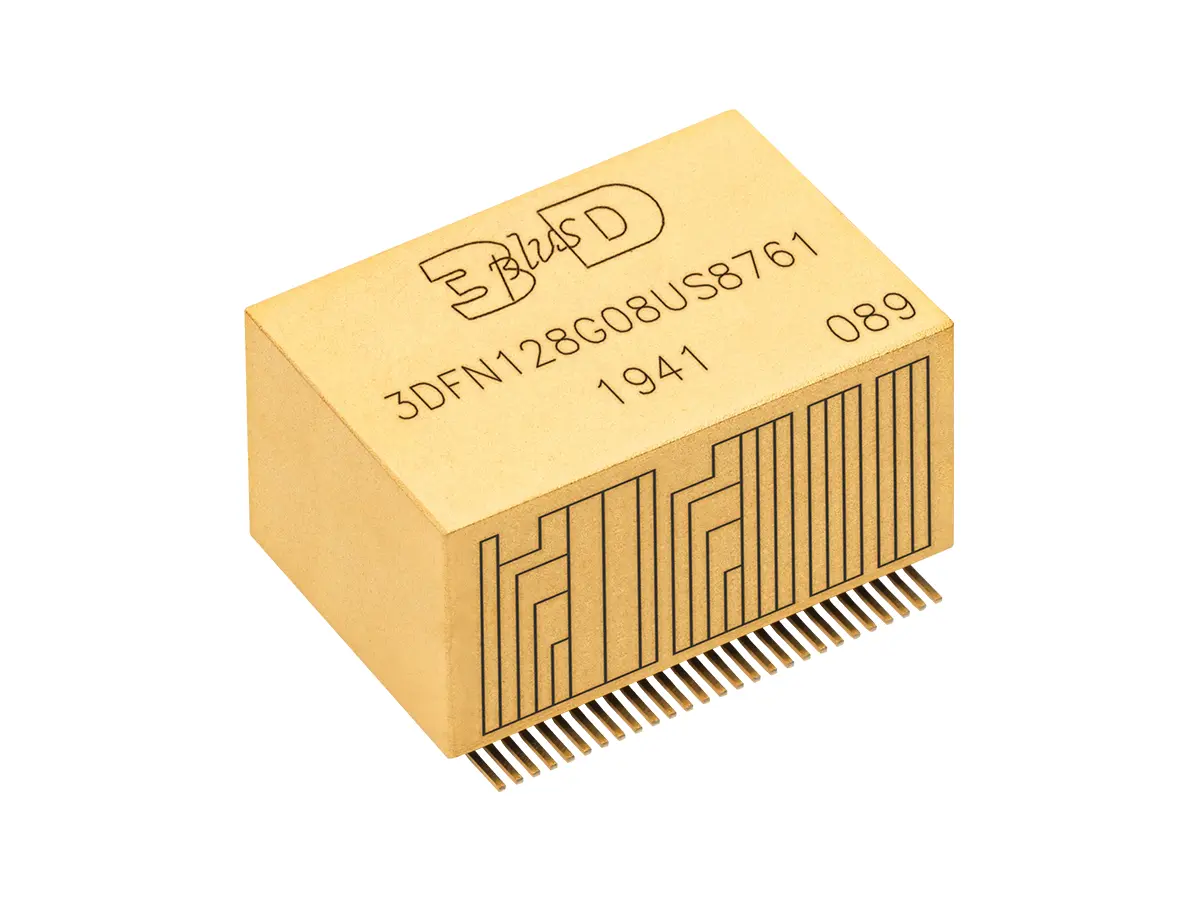

128 Gbit NAND Flash – based on 8 x (2G x 8) (3DFN128G08US8761)

Name: 128 Gbit NAND Flash - based on 8 x (2G x 8) (3DFN128G08US8761) | MSA Components GmbH
SKU: c6cd8765fc47

SKU: c6cd8765fc47 Categories: RAD HARD / RAD TOLERANT, Memories, FLASH NAND Brand: 3D Plus

3D PLUS proposes high-density non-volatile NAND FLASH modules for space applications operating in Synchronous or Asynchronous modes. Each module embeds multiple 16 Gbit NAND FLASH component. Each device can be accessed by activating the associated control signal CEn#. Control signals such as WP#, W/R# and CLK are common.

Key performance benefits include increased bandwidth in the Synchronous mode, and a 1.8V I/O voltage targeted for compatibility with various FPGAs for Space application that currently have limited 3.3V I/O. It provides a cost-effective
solution for low power and high-capacity nonvolatile memory data storage needs in space applications

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

ONFI 2.1 compliant
Memory Cell Array: 8 × (2G × 8 bits)
Automatic Program and Erase
- Page size × 8 bit: (4K + 224) Byte/Bank
- Block Size: (512K + 28K) Byte/Bank
- Module size: 8192 blocks
1.8 V for I/O and 3.3 V for core
Synchronous I/O performance:
- 10 MHz < f < 83.33 MHz
- Read/write throughput per pin up to 166 MT/s
Command/Address/Data Multiplexed I/O Port
Hardware Data Protection (Program/Erase Lockout during Power Transitions)
Endurance: 100k Program/Erase Cycles with ECC
Data Retention: 10 Years
Available in all 3D PLUS screening and qualification options: commercial (C), industrial (I), and space (S)

Radtiation Tolerance

TID > 60 krad
SEL immune up to LET > 62.5 MeV·cm²/mg

Description

3DFN128G08US8761 modules provide a fully qualified memory solution. Packaged in SOP 54, they are available in Commercial, Industrial or Military temperature ranges and in all quality level

Applications

Telecommunication
Navigation
Science and Earth observation

Space Qualification

Qualified with 3D PLUS ESA certification per ESCC 2566001
Up to NASA Level 1
Long Term Availability and High Reliability
Radiation Hardened Design for High-End Space Computing Applications
Flight heritage: 3D PLUS expertise in space memories for more than 20 years (*)

Downloads

3D Plus Memory Module P/N Decoder
