128 Mbit NOR Flash – organized as 8M×16, based on 4M×16 (3DFO128M16VS2282)

Name: 128 Mbit NOR Flash - organized as 8M×16, based on 4M×16 (3DFO128M16VS2282) | MSA Components GmbH
SKU: c2aac48784e0

SKU: c2aac48784e0 Categories: RAD HARD / RAD TOLERANT, Memories, FLASH NOR Brand: 3D Plus

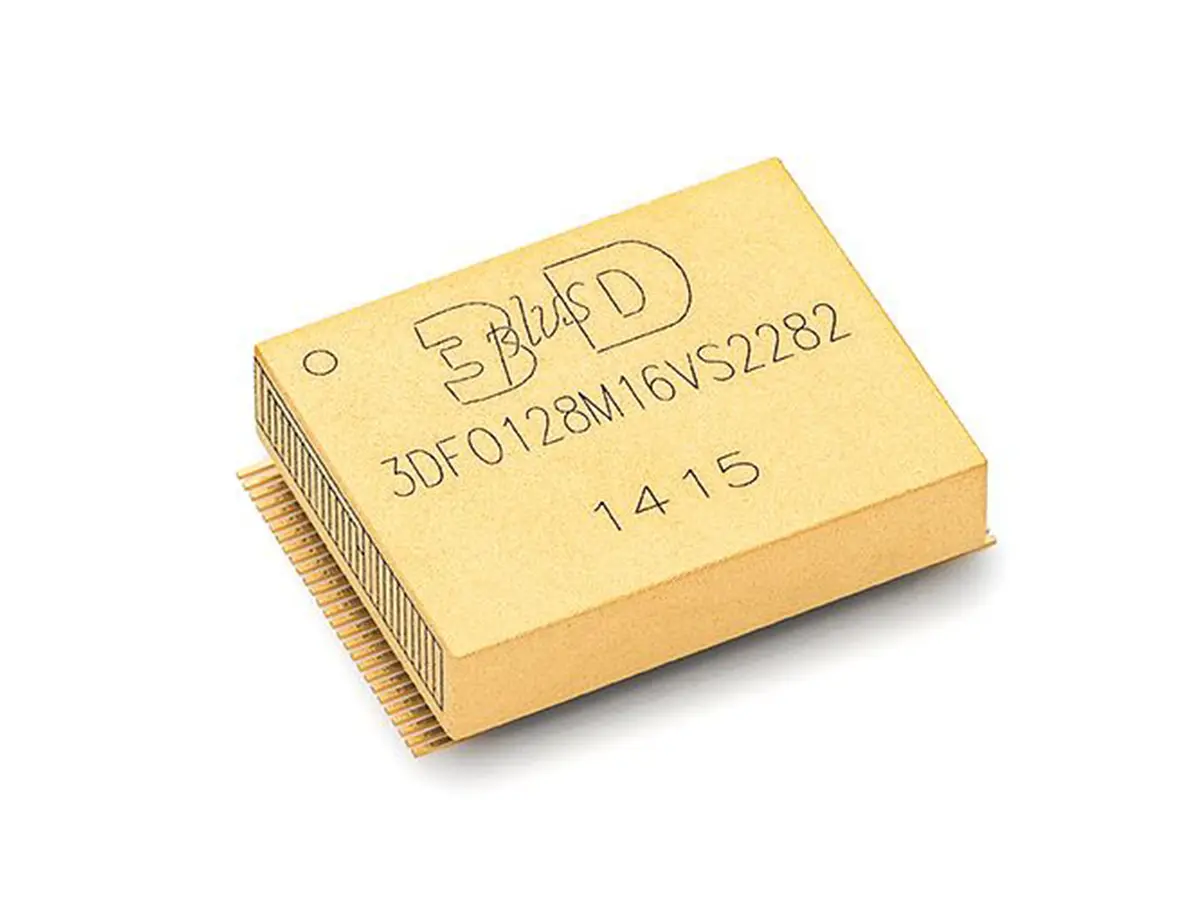

The 3DFO128M16VS2282 is a 128-Mbit high-density simultaneous Read/Write FLASH Memory module organized as 8M × 16-bit.

Using high-performance and high-reliability technology chips, stacking with the well-known 3D PLUS MCM-V technology, this FLASH memory module provides a cost-effective solution for low power and high-capacity non-volatile memory data storage needs.

Each device of the module is a 64M-Bit FLASH Memory, organized as 8M × 16 bit, that can be accessed by activating the associated control signals (#CEn and #WP/ACCn).

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Single 3.0 V Power Supply
Organization: 8M × 16-Bit
Stack of two 4M × 16 FLASH Memories
Simultaneous Read/Write operation
- Data can be continuously read on one bank while executing erase/program functions in another bank
- Zero latency between read and write operation
Flexible Bank architecture
Boot Sectors
- Top and Bottom boot sectors in the same device
- Any combination of sectors can be erased
Zero Power Operation
- Sophisticated power management circuits reduce power consumed during inactive periods to nearly zero
High performance
- Access Time as fast as 90 ns
- Program time: 4 µs/word typical utilizing Accelerate function
Ultra low power consumption
Minimum 1 million erase cycles guaranteed per sector
20 year data retention
Available with screening option for high reliability applications (Space, etc.)

Description

The 3DFO128M16VS2282 module is packaged in a 54 SOP Package and is available for commercial, industrial, and military temperature ranges.

Downloads

3D Plus Memory Module P/N Decoder

Manufacturer Info

www.3d-plus.com
