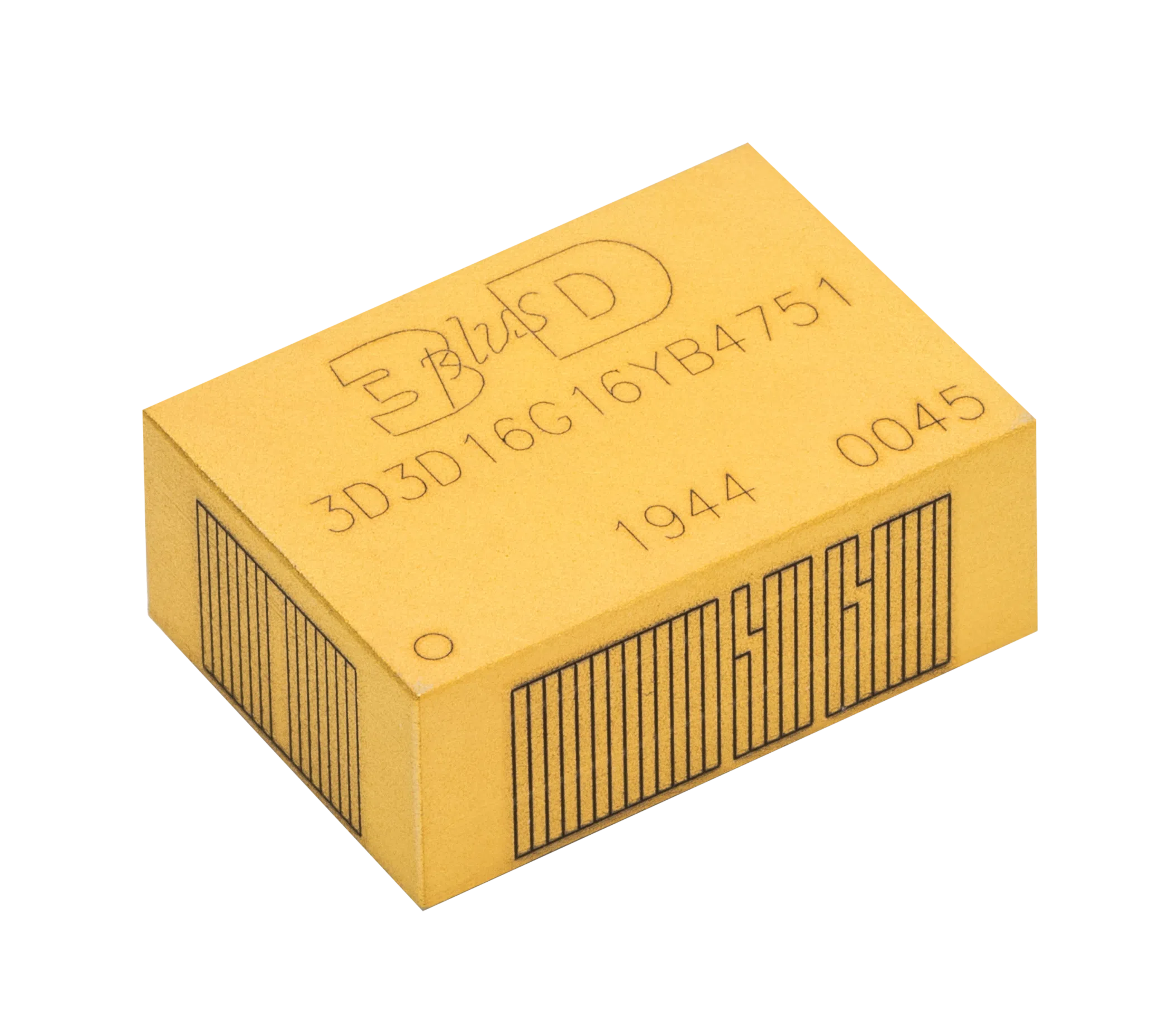

16 Gbit DDR3, 1G x16 bits, 1.35/1.5 V (3D3D16G16YB4751)

Categories: Memories, DDR, SDRAM Brand: 3D Plus

3D PLUS DDR3 products are ideally suited for systems requiring premium, high-performance memory; they offer high-bandwidth solutions qualified and characterized for operation under the extreme conditions typical of most space applications.

These memory modules are designed to fully leverage the capabilities of space-grade microprocessors, DSPs, and/or FPGAs.

3D PLUS DDR3 memory modules are part of a DDR3 ecosystem, providing a fully space-qualified memory subsystem solution.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Fabio Asti

Business Developement Manager

+39 342 198 3878 fabio.asti@steliau.it

Send inquiry

JEDEC JESD79-3F compliant
Organization: 1G × 16 bits
Dual rank
Including decoupling and termination
Max clock rate available: 667 MHz
Max transfer rate: 1333 MT/s
Up to 200 MHz in DLL off mode
VDD/VDDQ = 1.35 V, backward compatible with 1.5 V
Programmable CAS latency (CL)
Programmable Additive Latency
Programmable Burst Length: 4 and 8
Programmable Burst Sequence: Sequential or Interleaved
Burst Length switch on the fly
Auto Self Refresh
TDQS (Termination Data Strobe) supported
Dynamic On-die Termination (ODT)
Write Leveling
Available temperature range:
- 0°C to +70°C
- -40°C to +85°C
- -40°C to +105°C
Qualified for Space Applications

Radtiation Tolerance

TID > 75 krad
SEL immune up to LET > 60 MeV·cm²/mg
SEU mitigation thanks to RIMC DDR3

Description

3D PLUS offers a family of space qualified DDR3 Synchronous Dynamic RAM (SDRAM) memory modules, with densities up to 24 Gbit; data bus widths of 16bits, 48 bits and 72 bits; and operating at frequencies up to 667 MHz.

Space Qualification
