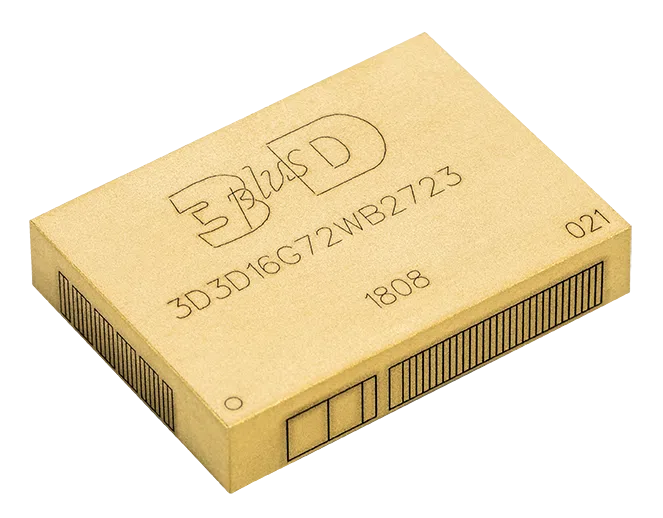

16 Gbit DDR3, 256M x72 bits, 1.35/1.5 V (3D3D16G72WB2723)

• JEDEC JESD79-3F compliant
• Organization: 256M × 64 bits (+ 8 bits ECC)
• Including decoupling and termination
• Max Clock rate available: 667 MHz
• Max Transfer Rate: 1333 MT/s
• Up to 200 MHz in DLL off mode
• VDD/VDDQ = 1.35 V, backward compatible with 1.5 V
• Programmable CAS latency (CL)
• Programmable Additive Latency
• Programmable Burst Length: 4 and 8
• Programmable Burst Sequence: Sequential or Interleaved
• Burst Length switch on the fly
• Auto Self Refresh
• TDQS (Termination Data Strobe) supported
• Dynamic On-die Termination (ODT)
• Write Leveling
• Available temperature range:
  • 0°C to +70°C
  • -40°C to +85°C
  • -40°C to +105°C
• Qualified for Space Applications

Radtiation Tolerance

• TID > 75 krad
• SEL immune up to LET > 60 MeV·cm²/mg
• SEU mitigation thanks to RIMC DDR3

Description

3D PLUS offers a family of space qualified DDR3 Synchronous Dynamic RAM (SDRAM) memory modules, with densities up to 24 Gbit; data bus widths of 16bits, 48 bits and 72 bits; and operating at frequencies up to 667 MHz

Space Qualification

• Qualified with 3D PLUS ESA certification per ESCC 2566001
• Up to NASA Level 1
• Long Term Availability and High Reliability
• Radiation Hardened, designed for high-end space computing applications
• Flight heritage: 3D PLUS expertise in space memories for more than 25 years(*)

*From SRAM, SDRAM to DDR1/2/3
