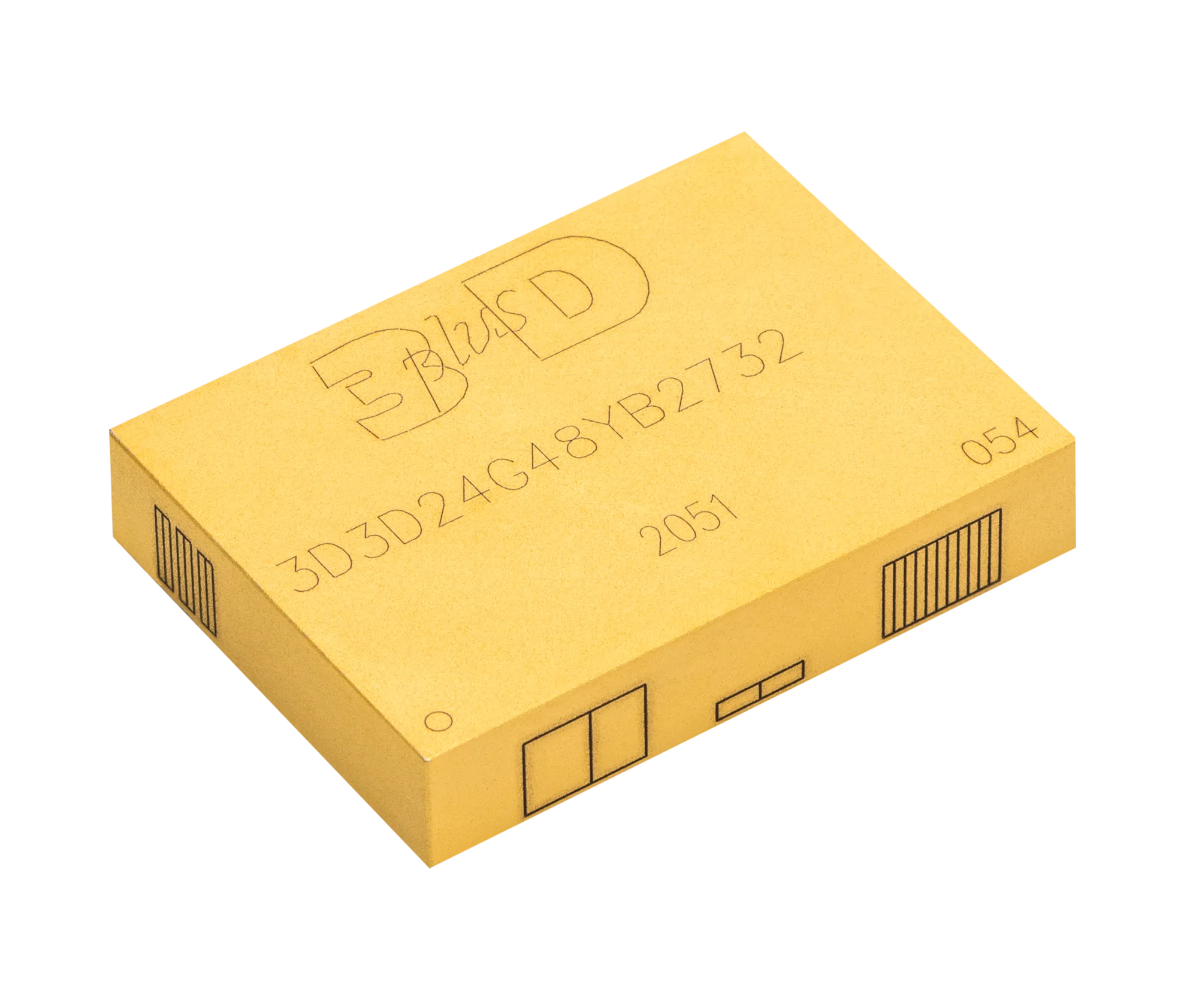

24 Gbit DDR3, 512M x48 bits, 1.35/1.5 V (3D3D24G48YB2732)

Categories: Memories, DDR, SDRAM Brand: 3D Plus

3D PLUS’s DDR3 products are a perfect fit for systems requiring best in class, high performance memories; offering high speed bandwidth solutions that are qualified and characterized for use in the extreme environments present in most space applications.

Those memories are typically well suited to gain all benefits from space grade microprocessors, DSPs and/or FPGAs.

3D PLUS’s DDR3 memory modules are part of a DDR3 ecosystem, providing fully space qualified memory subsystem solution.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Fabio Asti

Business Developement Manager

+39 342 198 3878 fabio.asti@steliau.it

Send inquiry

Compliant with JEDEC JESD79-3F
Organization: 512 M × 48-bit
Includes decoupling and termination
Maximum clock frequency: 667 MHz
Maximum data rate: 1333 MT/s
Up to 200 MHz in DLL-off mode
VDD/VDDQ = 1.35 V, backward compatible with 1.5 V
Programmable CAS latency (CL)
Programmable additive latency
Programmable burst length: 4 and 8
Programmable burst sequence: sequential or interleaved
On-the-fly burst length switching
Automatic self-refresh
Support for TDQS (Termination Data Strobe)
Dynamic on-die termination (ODT)
Write leveling
Available temperature range:
- 0°C to +70°C
- -40°C to +85°C
- -40°C to +105°C
Qualified for space applications

Radtiation Tolerance

TID > 75 krad
SEL immune up to LET > 60 MeV·cm²/mg
SEU mitigation thanks to RIMC DDR3

Description

3D PLUS offers a family of space qualified DDR3 Synchronous Dynamic RAM (SDRAM) memory modules, with densities up to 24 Gbit; data bus widths of 16 bits, 48 bits and 72 bits; and operating at frequencies up to 667 MHz.

Space Qualification
