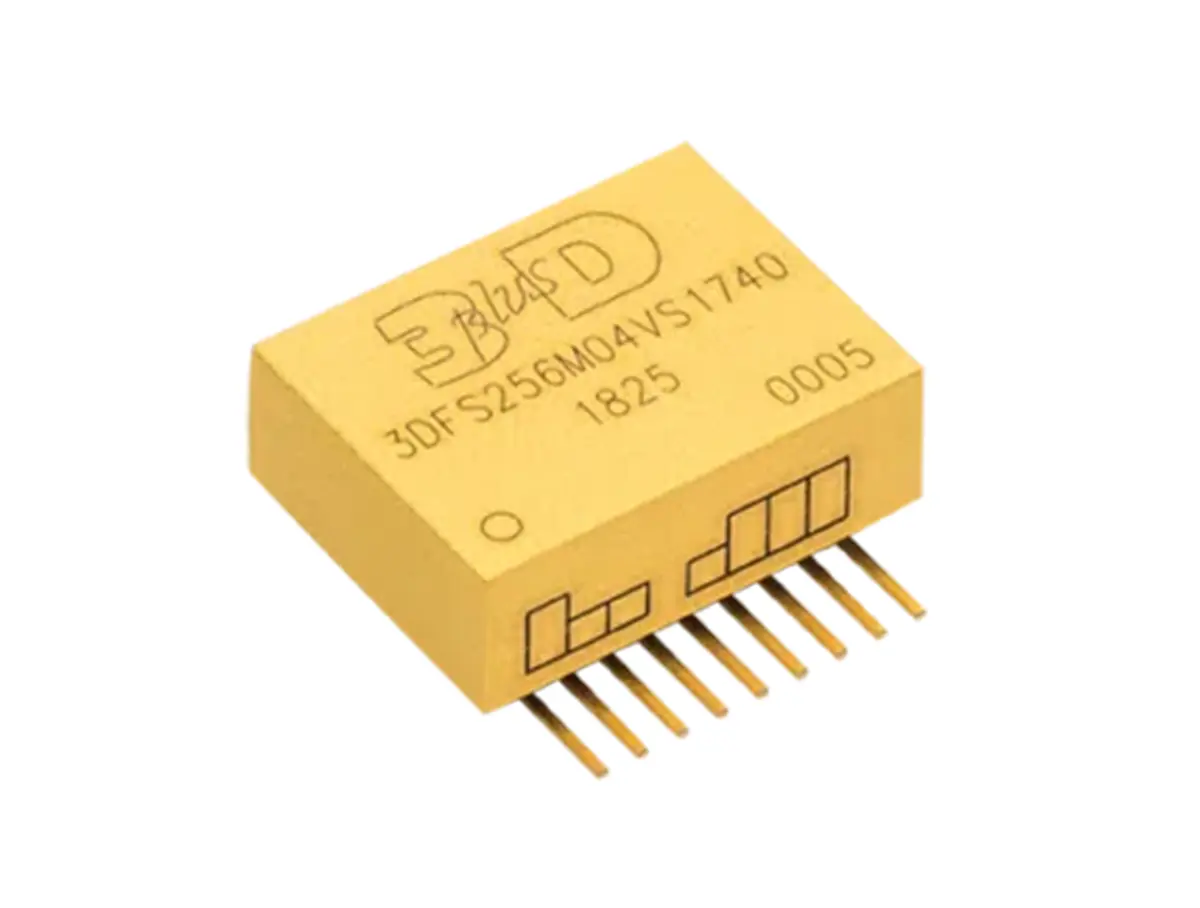

256 Mbit QSPI NOR Flash (3DFS256M04VS1740)

Name: 256 Mbit QSPI NOR Flash (3DFS256M04VS1740) | MSA Components GmbH
SKU: 514ebfd3b49e

SKU: 514ebfd3b49e Categories: RAD HARD / RAD TOLERANT, Memories, FLASH NOR Brand: 3D Plus

The 3DFS256M04VS1740 is a SPI Flash NOR. The memorie is organized respectively in 2 banks of 128 Mbit each with distinct chip enable CEn# control. Each memory requires only a single 3.0 V power supply for both read and write functions.

Thanks to dual SPI and quad SPI interfaces, and Fast Read mode feature, these serial NOR Flash memory can achieve highthroughput (up to 133 MHz), which makes them a perfect fit for high-speed circuit applications. They are highly suitable for code storage in embedded systems.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

256 Mbit density
Single supply voltage: 3.0 V
Supports standard SPI, Fast, Dual, QPI, SPI DTR, and Dual SPI DTR I/O
50 MHz in Normal mode and 133 MHz in Fast Read mode
More than 100,000 erase/program cycles
More than 20-year data retention
Program 1 to 256 bytes per page
Program/Erase Suspend & Resume
Low Instruction Overhead Operations
Continuous Read 8/16/32/64-byte burst
Selectable burst length
QPI for reduced instruction overhead
Available Temperature Range:
- 0°C to +70°C
- -40°C to +85°C
- -55°C to +105°C
ITAR free
Qualified for Space Applications

Description

Thanks to the SPI interface, the 3DFS256M04VS1740 offer very low pin count. They are packaged in an 18 pin SOP.

Applications

FPGA configuration bitstream
Boot code storage for microcontrollers and microprocessors

Space Qualification

Qualified with 3D PLUS ESA certification per ESCC 2566001
Up to NASA Level 1
High Longevity and Reliability
Flight heritage: 3D PLUS expertise in space memories for more than 20 years

From EEPROM, MRAM to NOR Flash

Downloads

3D Plus Memory Module P/N Decoder

Manufacturer Info

www.3d-plus.com
