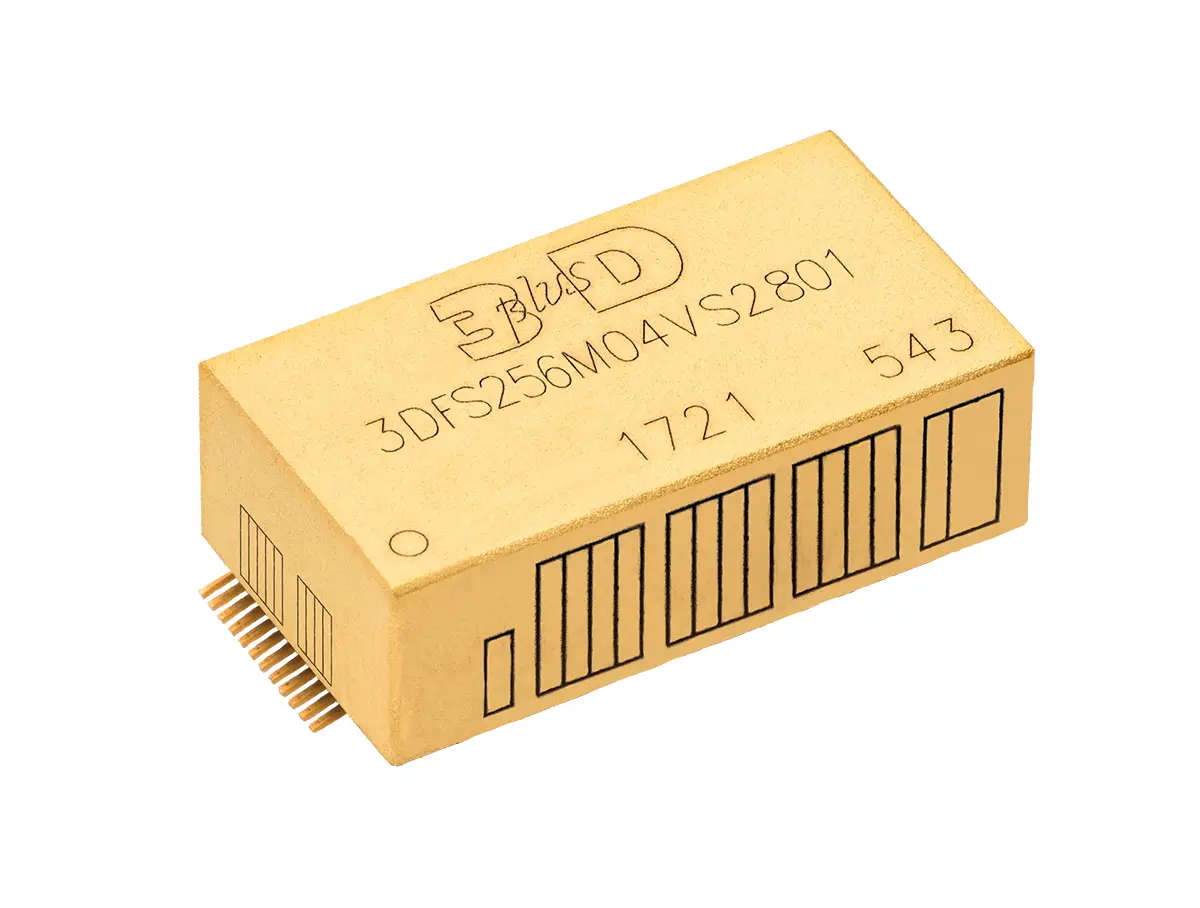

256 Mbit QSPI TMR NOR Flash (3DFS256M04VS2801)

• 256 Mbit density
• Single supply voltage: 3.3 V
• Supports standard SPI, Dual, QSPI modes
• Supports only 16 bits word access (read and write) at even address
• Two QSPI user buses
• Up to 50 MHz in Fast Read Mode
• 100,000+ erase/program cycles
• More than 20-year data retention
• Low Instruction Overhead Operations
• Continuous Read 8-byte burst
• Available Temperature Range:
  • 0°C to +70°C
  • -40°C to +85°C
  • -55°C to +105°C
• Package: SOP 24 – 0.65 mm pitch
• ITAR free
• Radiation Effect/Data integrity failure notification bit (ECC_Flag)
• Qualified for Space Applications

Radiation Tolerance

• TID > 40 krad(Si) (off)
• SEL LET > 62.5 MeV.cm²/mg
• SEE mitigated by design

Description

The 3DFS256M04VS2801 also provides two distinct QSPI user buses. It allows the module to be updated/reconfigured in flight by another device and thus to enhance its fault tolerance.

Applications

• FPGA (e.g.: V5Q, KU060) configuration
  bitstream
• Boot code storage for microcontrollers and microprocessors

Space Qualification

• Qualified with 3D PLUS ESA certification per ESCC 2566001
• Up to NASA Level 1
• High Longevity and Reliability
• Flight heritage: 3D PLUS expertise in space memories for more than 20 years

From EEPROM, MRAM to NOR Flash
