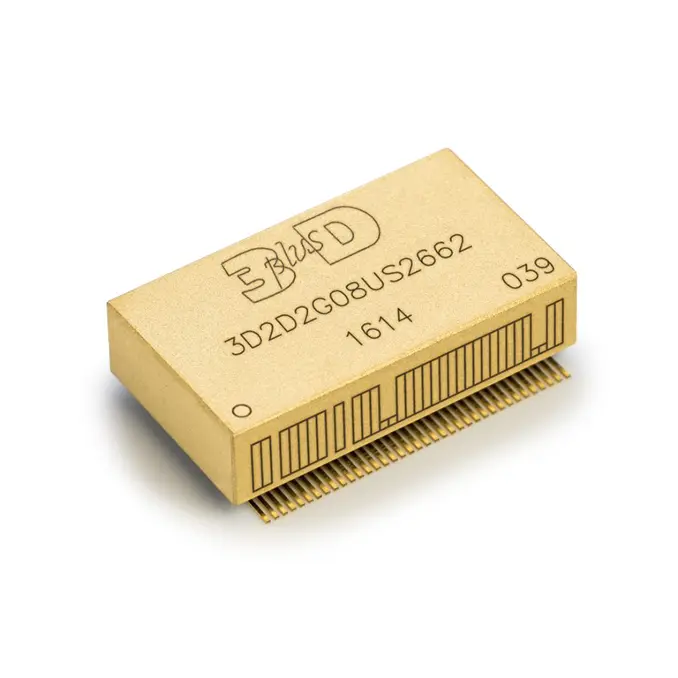

2Gbit DDR2 SDRAM (3D2D2G08US2662)

Categories: Memories, DDR, SDRAM Brand: 3D Plus

Each bank has an 8-bit interface and is selected with specific #CS, CKE, #CK, CK and ODT. All other signals are common to the 2x 1 Gbit DDR2 SD RAM memories. It is particularly well suited for use in high reliability, high performance and high density system applications, such as solid state mass recorder, server or workstation.
The 3D2D2G08US2662 is packaged in a 74 pin SOP.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Fabio Asti

Business Developement Manager

+39 342 198 3878 fabio.asti@steliau.it

Send inquiry

Organized as 256M × 8-bit based on two 1 Gbit DDR2 SDRAM.
Power supply: +1.8 V ± 0.1 V.
SSTL_18 interface.
Burst read/write operation and burst read/single write operation capability.
Burst length (BL):
- 4
- 8
Burst type (BT):
- Sequential (BL = 4, 8)
- Interleave (BL = 4, 8)
Programmable CAS Latency (CL):
- 3
- 4
- 5
Auto precharge option for each burst access.
Refresh cycles: 8192 refresh cycles / 64 ms.
Refresh modes:
- Auto refresh
- Self refresh
Available temperature range:
- 0°C to +85°C
- -40°C to +105°C
Available with screening option for high reliability applications (Space, etc.).
Frequency: up to 333 MHz.
