2GBit organized as 128Mx16 based on 128Mx8

2Gbit DDR2 SDRAM (3D2D2G16UB2684)

Categories: Memories, DDR, SDRAM Brand: 3D Plus

It is particularly well suited for use in high reliability, high performance and high density system applications, such as solid state mass recorder, server or workstation.

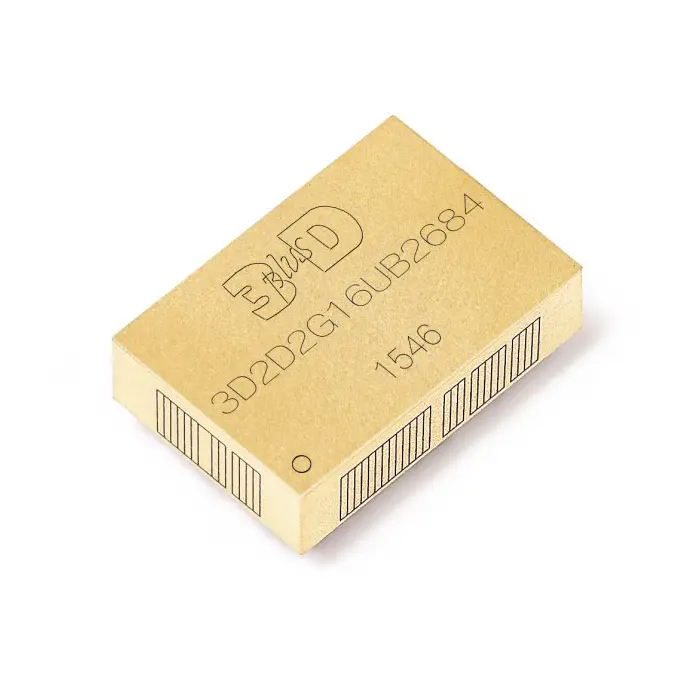

The 3D2D2G16UB2684 is packaged in a 95-ball BGA.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Fabio Asti

Business Developement Manager

+39 342 198 3878 fabio.asti@steliau.it

Send inquiry

Organized as 128M × 16-bit based on two 1 Gbit DDR2 SDRAM.
Power supply: +1.8 V ± 0.1 V.
SSTL_18 interface.
Burst read/write operation and burst read/single write operation capability.
Burst length (BL):
- 4
- 8
Burst type (BT):
- Sequential (BL = 4, 8)
- Interleave (BL = 4, 8)
Programmable CAS Latency (CL):
- 3
- 4
- 5
Auto precharge option for each burst access.
Refresh cycles: 8192 refresh cycles / 64 ms.
Refresh modes:
- Auto refresh
- Self refresh
Available temperature range:
- 0°C to +70°C
- -40°C to +85°C
- -40°C to +105°C
Available with screening option for high reliability applications.

Description

The 3D2D2G16UB2684 is a high-speed highly integrated DDR2 Synchronous Dynamic Random Access Memory containing 2.147.483.648 bits with the 16-bit interface.
