32-bit Buffer Transceiver – LVTH Module (3DLT162245VS1639)

Name: 32-bit Buffer Transceiver - LVTH Module (3DLT162245VS1639) | MSA Components GmbH
SKU: 061846f86fb6

SKU: 061846f86fb6 Categories: RAD HARD / RAD TOLERANT, Interfaces, LVT Brand: 3D Plus

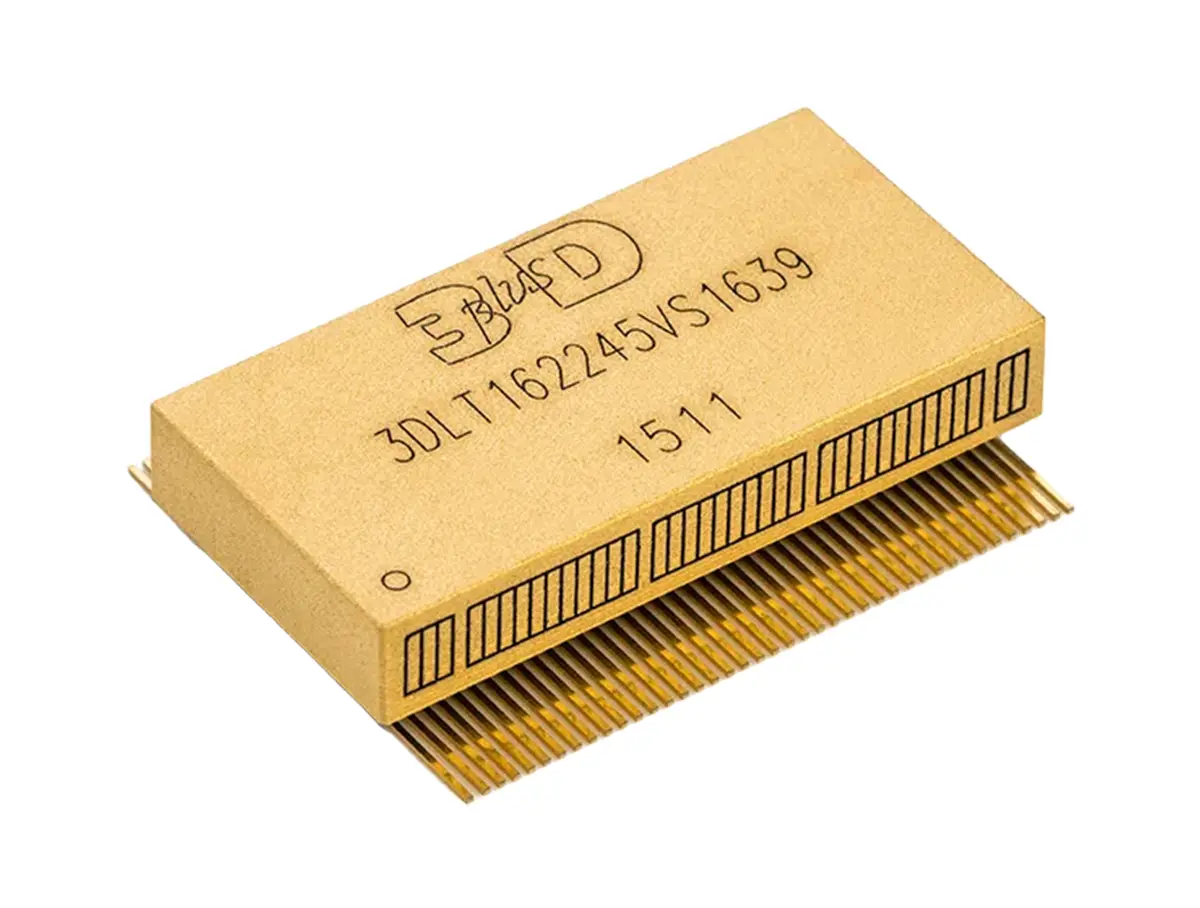

The 3DLT162245VS1639 are Dual 16-bit inputs and Dual 16-bit outputs transceiver. It is ideal for low power and very high speed (1.65 to 3.6V) applications and can be interfaced to a 3.6V signal environment for both inputs and outputs.

This integrated circuit is intended for two-way asynchronous communication between data buses. The direction of data transmission is determined by digital input recorder (DIR) input. he two enable inputs can be used to disable the device so that the buses are effectively isolated. The device circuits include 26 Ω series resistance in the A ports outputs.

These resistors reduce line noise in high-speed applications. Bus hold on data inputs is provided to eliminate the need for external pull-up or pull-down resistors.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

1.65 V to 3.6 V inputs and outputs
Minimum 24 mA output drive current
High speed A outputs:
- tPD = 3.4 ns at VCC = 3.0 to 3.6 V
- tPD = 4.3 ns at VCC = 2.3 to 2.7 V
Symmetrical impedance A outputs:
- |IOH| = IOL = 12 mA (min.) at VCC = 3.0 V
- |IOH| = IOL = 8 mA (min.) at VCC = 2.3 V
High speed B outputs:
- tPD = 2.5 ns (max.) at VCC = 3.0 to 3.6 V
- tPD = 3.2 ns (max.) at VCC = 2.3 to 2.7 V
Symmetrical impedance B outputs:
- |IOH| = IOL = 24 mA (min.) at VCC = 3.0 V
- |IOH| = IOL = 18 mA (min.) at VCC = 2.3 V
Power down protection on inputs and outputs
26 Ω series resistors in A port outputs
Bus hold provided on both sides
Cold spare function
Radiation Hardened Die:
- Total Dose: 100Krad(Si)
- Immune to SEL (LET > 80 MeV.cm²/mg)
Available Temperature Range:
- 0°C to 70°C
- -40°C to +85°C
- -55°C to +125°C

Description

The 3DLT162245VS1639 is packaged in a 82 pin SOP.
