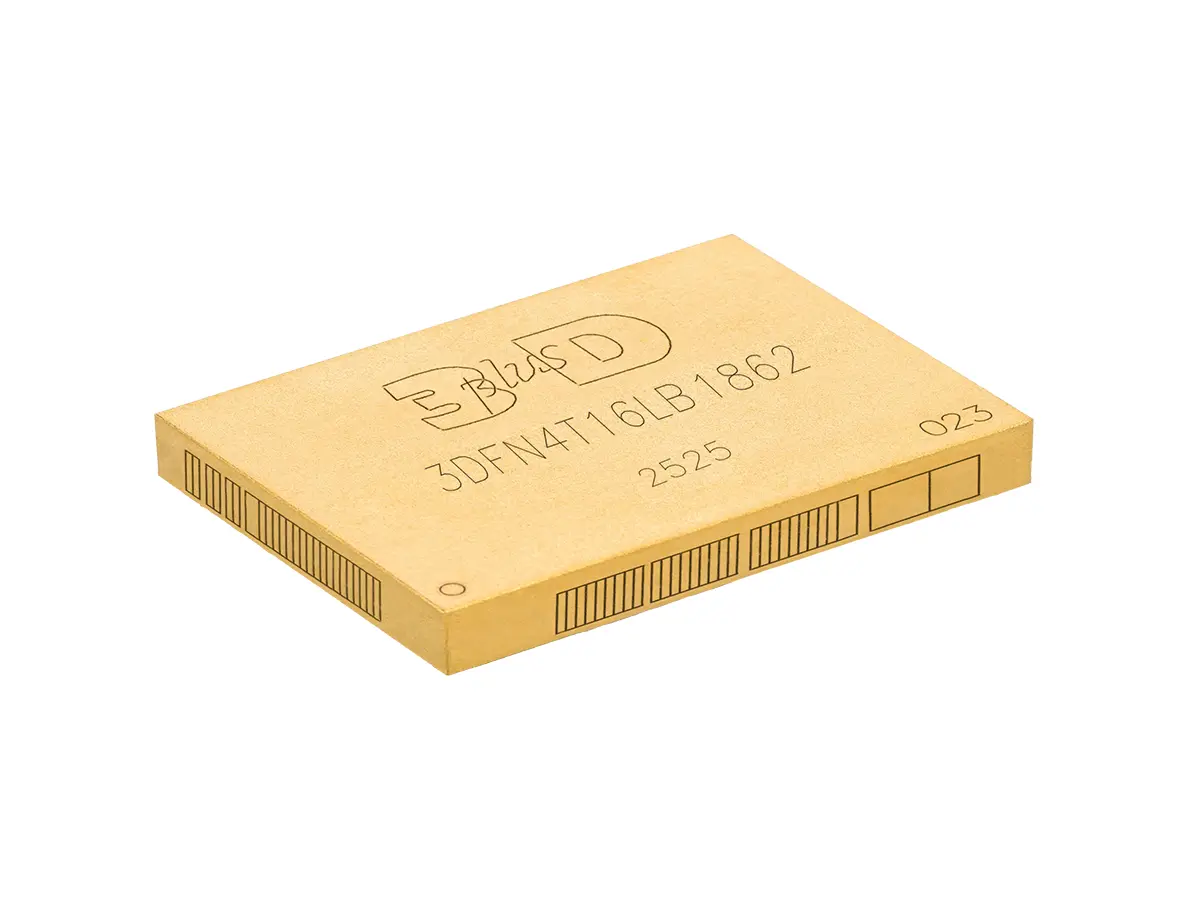

4 TB High Density NAND FLASH 3DFN4T16LB1862

4 Tbit TLC/1.33 Tbit SLC NAND Flash (3DFN4T16LB1862)

Name: 4 Tbit TLC/1.33 Tbit SLC NAND Flash (3DFN4T16LB1862) | MSA Components GmbH
SKU: 9eec089e2a7f

SKU: 9eec089e2a7f Categories: RAD HARD / RAD TOLERANT, Memories, FLASH NAND Brand: 3D Plus

The 3DFN4T16LB1862 is 4 Tbit density NAND Flash memory based on TLC memory. In p-SLC mode, it’s a 1.33 Tbit NAND Flash. It can be accessed by 16 bits bidirectional data inputs/outputs, with four control signals. This organization is compliant with ONFI 4.2.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

ONFI 4.2 compliant
JEDEC NAND Flash Interoperability (JESD230D) compliant
Triple-level cell (TLC) supporting p-SLC mode
Page size x8: 18,352 bytes (16,384 + 1,968 bytes)
Block size: 2,112 pages (33,792K + 4,059K bytes)
Plane size: 4 planes × 556 blocks
NV-DDR3 I/O performance
- Up to NV-DDR3 timing mode 12
- Clock rate: 1.67 ns (NV-DDR3)
- Read/write throughput per pin: 1.6 GT/s
SLC array performance
- Read page operation time: 40 μs (TYP)
- Program page time: 170 μs (TYP)
- Erase block time: 8 ms (TYP)
Dual operating voltage supply
- VCC: 2.35 to 3.6 V
- VCCQ: 1.14 to 1.26 V
Data must be randomized by the external host before being input to the NAND device
On-die termination (ODT) supported
Endurance: 60,000 P/E cycles in p-SLC mode
Operating temperature: -40 °C to +85 °C

Radiation Data in P-SLC Mode

SEL LETTH: > 62.5 MeV·cm²/mg
HCE LETTH: ≤ 32.4 MeV·cm²/mg
SEFF LETTH: > 45.8 and ≤ 55 MeV·cm²/mg
SEU LETTH: ≤ 1.5 MeV·cm²/mg
SEFI LETTH: ≤ 1.5 MeV·cm²/mg
Total Ionizing Dose (TID): > 25–30 krad(Si)*

*: TBC

Description

The use of the p-SLC mode combined with 3D PLUS stacking technology, provides a Flash memory with an area efficient solution for ultra-high-density storage and high-speed data transfer needs. It is packaged in a 215 BGA.

Downloads

3D Plus Memory Module P/N Decoder

Manufacturer Info

www.3d-plus.com
