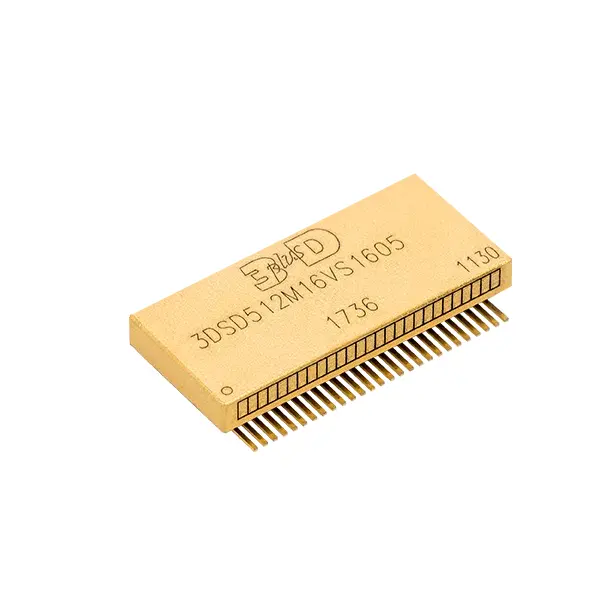

512 Mbit SDRAM (3DSD512M16VS1605)

Name: 512 Mbit SDRAM (3DSD512M16VS1605) | MSA Components GmbH
SKU: 24bc190c95f9

SKU: 24bc190c95f9 Categories: Memories, SDRAM Brand: 3D Plus

The 3DSD512M16VS1605 is a high-speed highly integrated Synchronous Dynamic Random Access Memory containing 536.870.912 bits.

It is organized with two banks of 512 Mbit.

Each bank has a 16-bit interface and is selected with specific #CS, CKE and CLK.

It is particularity well suited for use in high reliability, high performance and high density system applications, such as solid state mass recorder, server or workstation.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Organized as 32M x16-bit.
Single +3.3V power supply.
Fully synchronous; all signals registered on positive edge of system clock.
Internal pipelined operation; column address can be changed every clock cycle.
Programmable burst length; 1, 2, 4, 8 or full page.
Auto precharge includes concurrent auto precharge, and auto refresh modes.
Self refresh modes.
LVTTL-compatible inputs and outputs.
Available Temperature Range:
- 0°C to +70°C
- -40°C to +85°C
- -40°C to +105°C
Available with screening option for high reliability applications (Space, etc…).

Description

The 3DSD512M16VS1605 is packaged in a 54 pin SOP.

Downloads

3D Plus Memory Module P/N Decoder

Manufacturer Info

www.3d-plus.com
