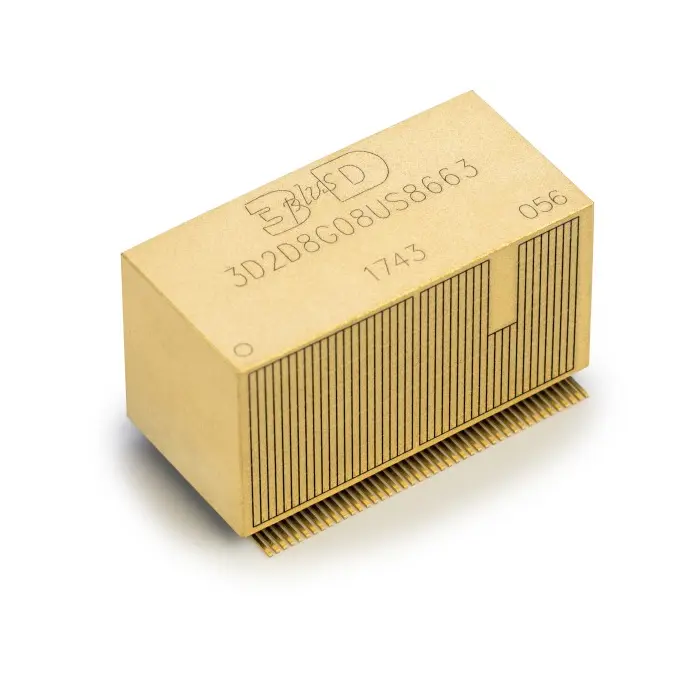

8 Gbit DDR2 SDRAM (3D2D8G08US8663)

Name: 8 Gbit DDR2 SDRAM (3D2D8G08US8663) | MSA Components GmbH
SKU: 320610382db9

SKU: 320610382db9 Categories: DDR, Memories, SDRAM Brand: 3D Plus

Each bank has 8-bit interface and is selected with specific #CS, CKE, #CK and CK. All other signals are common to the eight 1 Gbit DDR2 SDRAM memories, except only one ODT connect to one die. It is particularly well suited for use in high reliability, high performance and high density system applications, such as solid state mass recorder, server or workstation. The 3D2D8G08US8663 is packaged in a 88 pin SOP.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Fabio Asti

Business Developement Manager

+39 342 198 3878 fabio.asti@steliau.it

Send inquiry

Organized as 1 G × 8-bit based on eight 1 Gbit DDR2 SDRAM devices.
Power supply: +1.8 V ± 0.1 V.
SSTL_18 interface.
Burst read/write operation and burst read/single write operation capability.
Burst length (BL):
- 4
- 8
Burst type (BT):
- Sequential (BL = 4, 8)
- Interleave (BL = 4, 8)
Programmable CAS latency (CL): 3, 4, or 5.
Auto precharge option for each burst access.
Refresh: 8192 refresh cycles per 64 ms.
Refresh modes:
- Auto refresh
- Self refresh
Available temperature ranges:
- 0°C to +70°C
- -40°C to +85°C
Available with screening option for high-reliability applications (space, etc.).

Description

The 3D2D8G08US8663 is a high-speed highly integrated DDR2 Synchronous Dynamic Random Access Memory containing 8.589.934.592 bits.
