ACC-120

Name: ACC-120 | MSA Components GmbH
SKU: f395e85374fe

SKU: f395e85374fe Categories: Capacitors, Film and Mica Capacitors, Power Capacitors Brand: Exxelia SAS

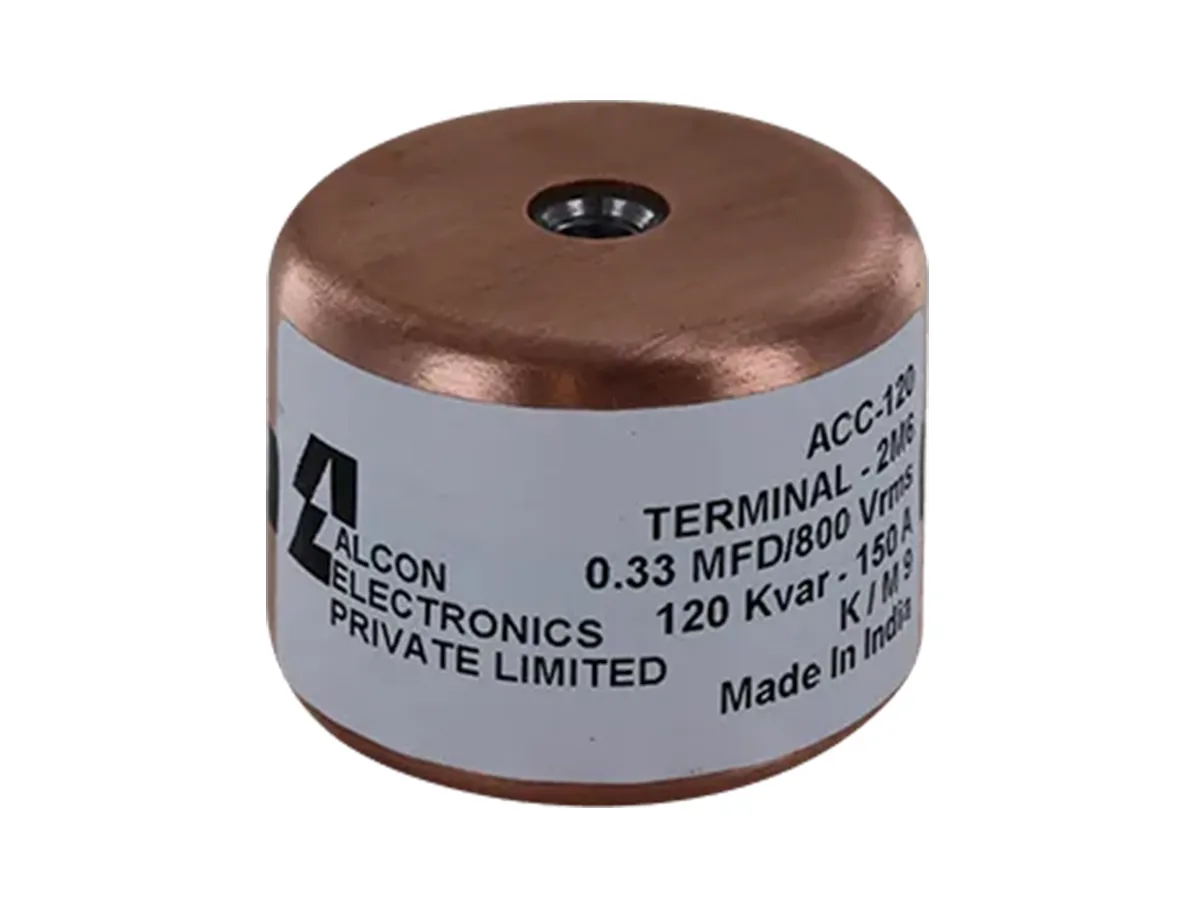

Exxelia’s ACC-120 is a conduction-cooled, self-healing polypropylene film capacitor for high-power, high-frequency applications. It offers 50 nF–2.5 µF capacitance, 800–1000 VAC ratings, up to 400 Arms and 150 kVAR, supporting induction heating, EV wireless charging, medical imaging, and resonant circuits.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Conduction cooled
Polypropylene dielectric
Self-healing
Operating frequency up to 1900 KHz
Maximum operating core temperature 85°C
Max Current: 400 IRMS
Max Power: 150 KVAR
Frequency Range: 63 – 700 KHz
ESL: < 3 nH
Size: 30.2 mm × 30 mm × 68 mm

Capacitance: 50nF ~ 2.5µF
Voltage Rated AC: 800Vac ~ 1000Vac
Operating Temp: 85°C
Tolerance: ±10%
Dielectric: Polypropylene (PP)
RoHS: ROHS

Typical applications:

Induction Heating
Electric Cars
Medical Imaging
EV Wireless Chargers
Resonant Circuits

Datasheet

ACC-120 Datasheet
