CalRamic CRT-0020

Name: CalRamic CRT-0020 | MSA Components GmbH
SKU: 7e19b2e72e99

SKU: 7e19b2e72e99 Categories: CalRamic Single Layer Disc, Capacitors, Ceramic Capacitors Brand: Exxelia SAS

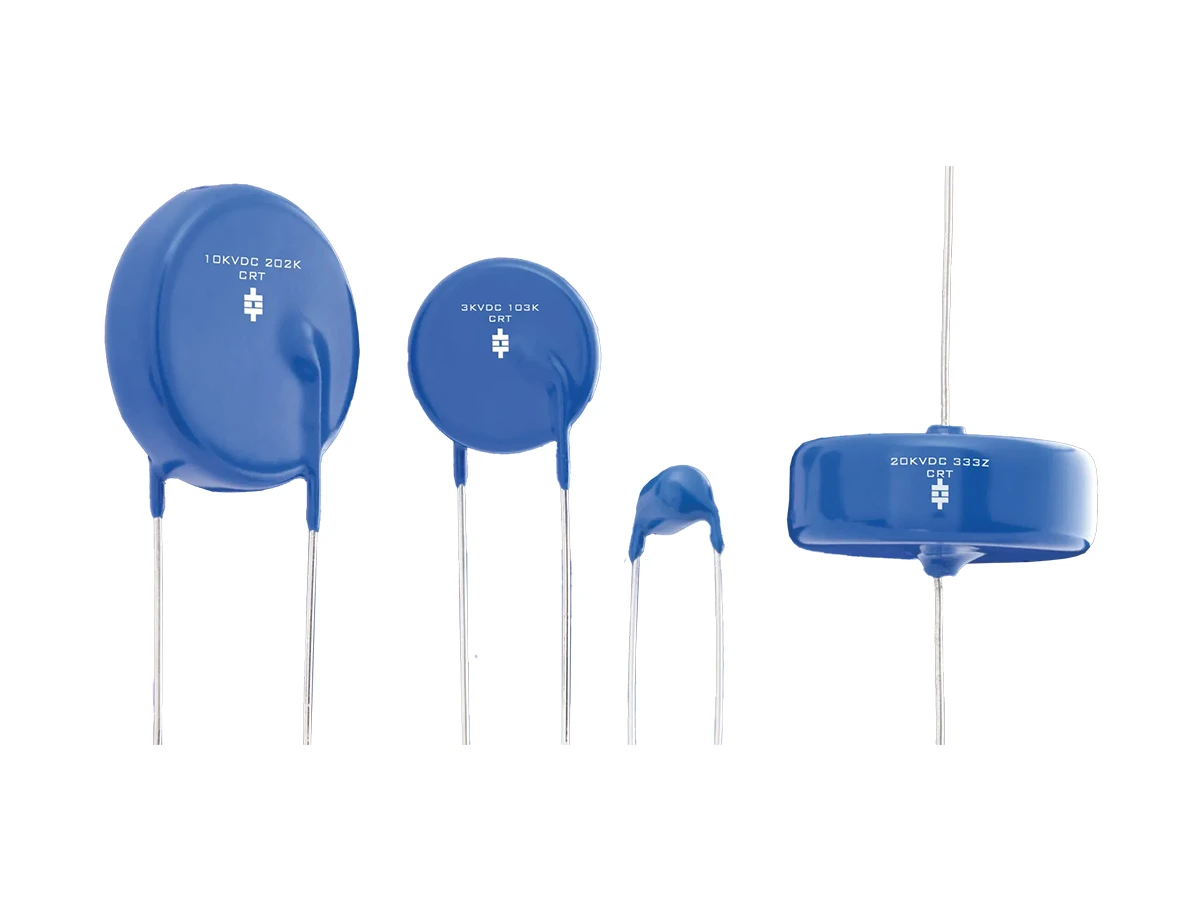

Exxelia’s CalRamic CRT-0020 ceramic capacitors provide high-voltage performance from 3kV to 20kV, with capacitance from 1.6pF to 0.045µF and operation from −55°C to 125°C. Available in multiple dielectric options, they support switching supplies, snubbers, inverters, coupling, and pulse circuits applications.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

High-Reliability & Space-Level: Manufactured with double-action pressing to ensure uniform ceramic density and proven durability.
Versatile Dielectric Options: Available in ultra-stable Class I (NPO) for low-loss precision, and stable Class II (X7R, X5R, X5U, Z5U, Y5P) materials.

Capacitance: 1.6pF ~ 0.045µF
Voltage Rated DC: 3kV ~ 20kV
Operating Temp: -55°C ~ 125°C
Dielectric: NPO, X7R, X5R, X5U, Z5U, Y5P
Resistance: 100MΩ

Applications

Optimized for switching power supplies, snubbers, inverters, coupling/decoupling, and high-voltage pulse circuitry.

Datasheet

CalRamic CRT-0020 Datasheet
