CEC5X Series

Name: CEC5X Series | MSA Components GmbH
SKU: 7af06e50de2e

SKU: 7af06e50de2e Categories: Capacitors, Ceramic Capacitors, High Capacitance Brand: Exxelia SAS

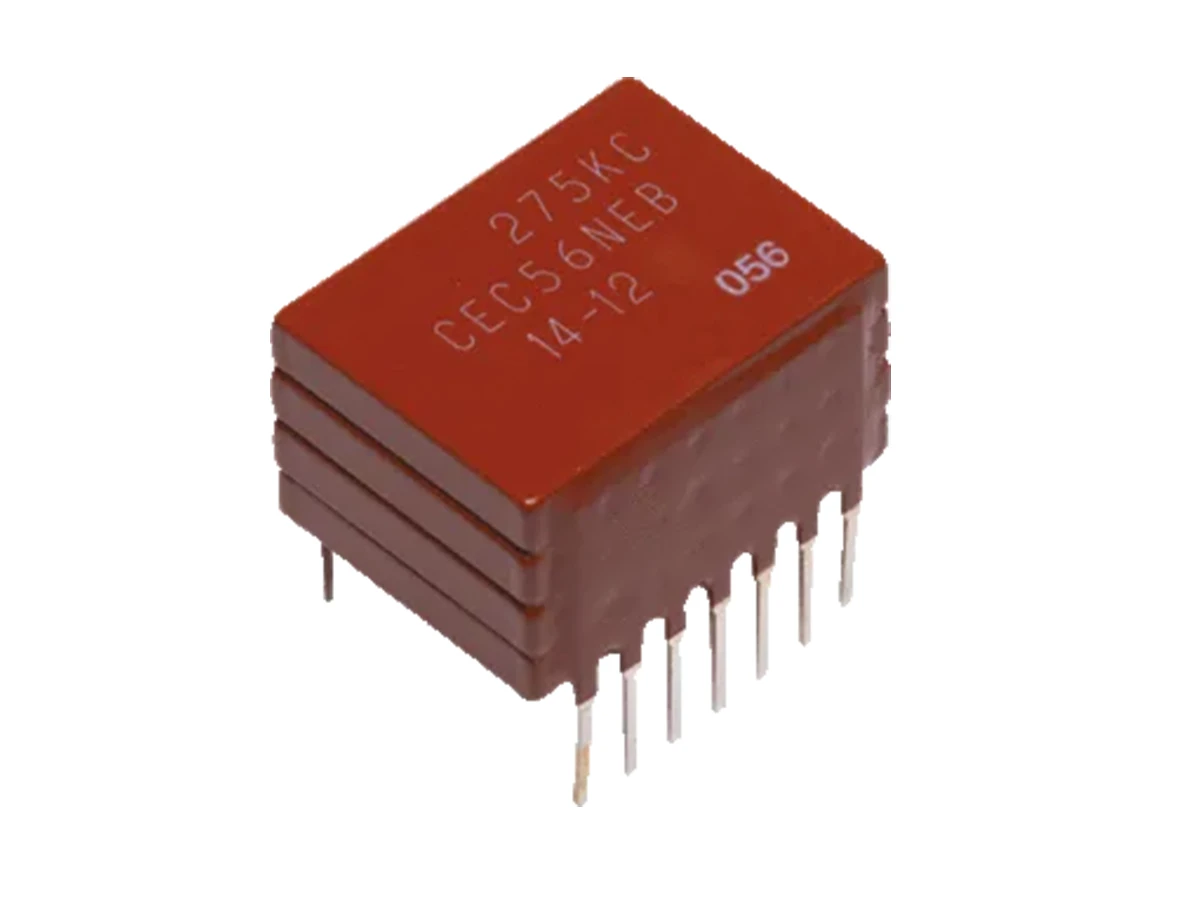

Exxelia’s CEC5X Series comprises high-capacitance ceramic capacitors using stacked technology for excellent voltage stability. Available with NPO dielectric, they offer 10nF–6.8µF capacitance, 63–500V ratings, and -55°C to 125°C operation, with SMD or DIL mounting options for power applications.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

High capacitance
Stacked technology
Excellent voltage stability
Formerly referenced as: CEC53, CEC54, CEC56, CEC58

Capacitance: 10nF ~ 6.8µF
Voltage Rated DC: 63V ~ 500V
Operating Temp: -55°C ~ 125°C
Tolerance: ±1%, ±2%, ±5%, ±10%, ±20%
Mounting: SMD, DIL
Case size: 5550, 3033, 3740, 6080, 8060, 80150, 40140
RoHS: ROHS, Non ROHS
Dielectric: NPO

Applications

Switch Mode Power Supplies
Filtering
DC/DC converters

Datasheet

CEC5X Series Datasheet
