CF-PP140

Name: CF-PP140 | MSA Components GmbH
SKU: 2872c84e2d5a

SKU: 2872c84e2d5a Categories: Capacitors, Film and Mica Capacitors, High Temperature Brand: Exxelia SAS

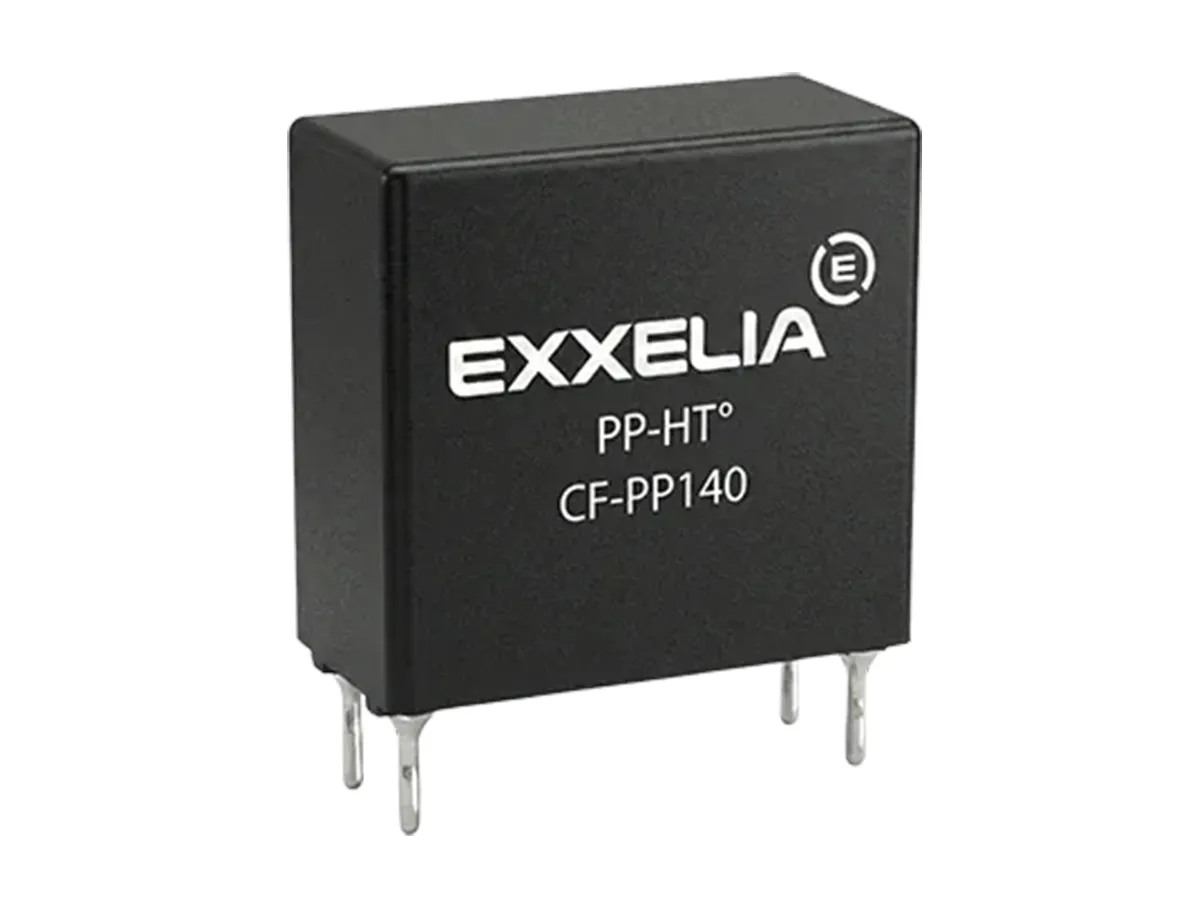

Exxelia’s CF-PP140 is a high-temperature, high-power polypropylene film capacitor designed for demanding aerospace and power applications. It offers 450–1500 V DC, temperatures up to 140°C, 0.8–210 µF capacitance, self-healing, low inductance, and high energy density.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Voltage: 450V to 1500V
Temperature: up to 140°C
Standard footprint
Energy density: +30% vs. competition
Energy density: up to 250 J/l
Dielectric: Polypropylene (PP HT – High Temperature)

Capacitance: 0.8µF ~ 210µF
Operating Temp: 140°C
Voltage Rated DC: 450V ~ 1500V
Tolerance: ±5%, ±10%
Dielectric: Metalized Polypropylene

Description

Self healing, low inductance / Thermoplastic case epoxy resin sealed / Tinned copper radial leads.

Typical applications:

UAV
eVTOL
Hybrid Aircraft

Datasheet

CF-PP140 Datasheet
