CH Series

Name: CH Series | MSA Components GmbH
SKU: ad27ec61b910

SKU: ad27ec61b910 Categories: Capacitors, Ceramic Capacitors, Microwave Brand: Exxelia SAS

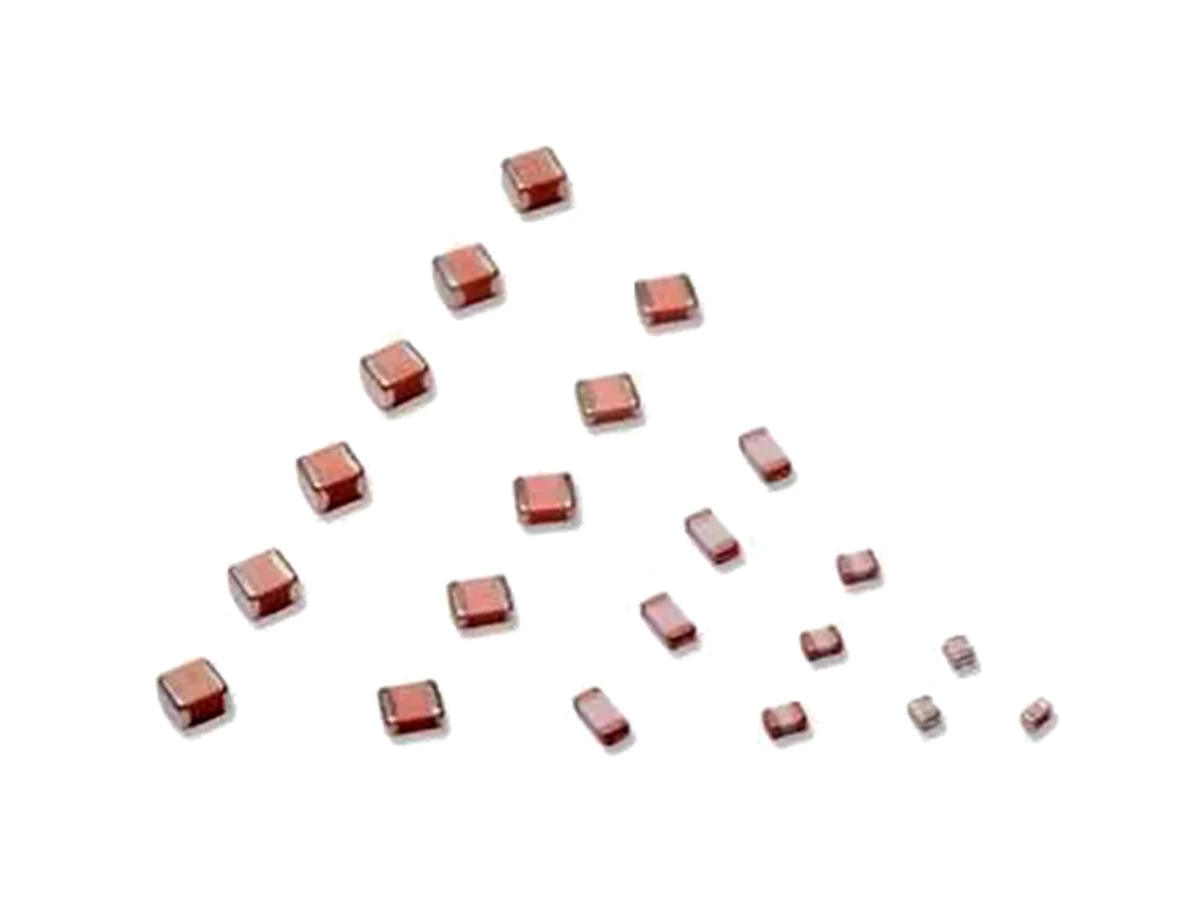

Exxelia’s CH Series ceramic capacitors are high-Q microwave components designed for high-frequency applications. They offer low ESR, high working voltages up to 1500V, and reliable operation from -55°C to 175°C. Available in NPO/P100 dielectric, these SMD capacitors provide capacitance from 0.1pF to 1000pF with tight tolerances. They are suitable for UHF, microwave and RF power amplifiers, filter networks, MRI coils, and other demanding high-frequency applications.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Low ESR
High working voltage up to 1500V
Extended operating temperature up to 175°C
Available with NPO dielectric and SH Series

Capacitance: 0.1pF ~ 1000pF
Voltage Rated DC: 50V ~ 1500V
Case Size: 1111, 0505
Operating Temp: -55°C ~ 175°C
Tolerance: ±1%, ±2%, ±5%, ±10%
Mounting: SMD
Dielectric: P100
Frequency: 30Hz ~ 3Hz
RoHS: ROHS

Applications

UHF, Microwave, RF power amplifiers
Filter networks
MRI coils

Datasheet

CH Series Datasheet
