CS Series

Name: CS Series | MSA Components GmbH
SKU: 13fdad6ee27b

SKU: 13fdad6ee27b Categories: Capacitors, Ceramic Capacitors, High Voltage Brand: Exxelia SAS

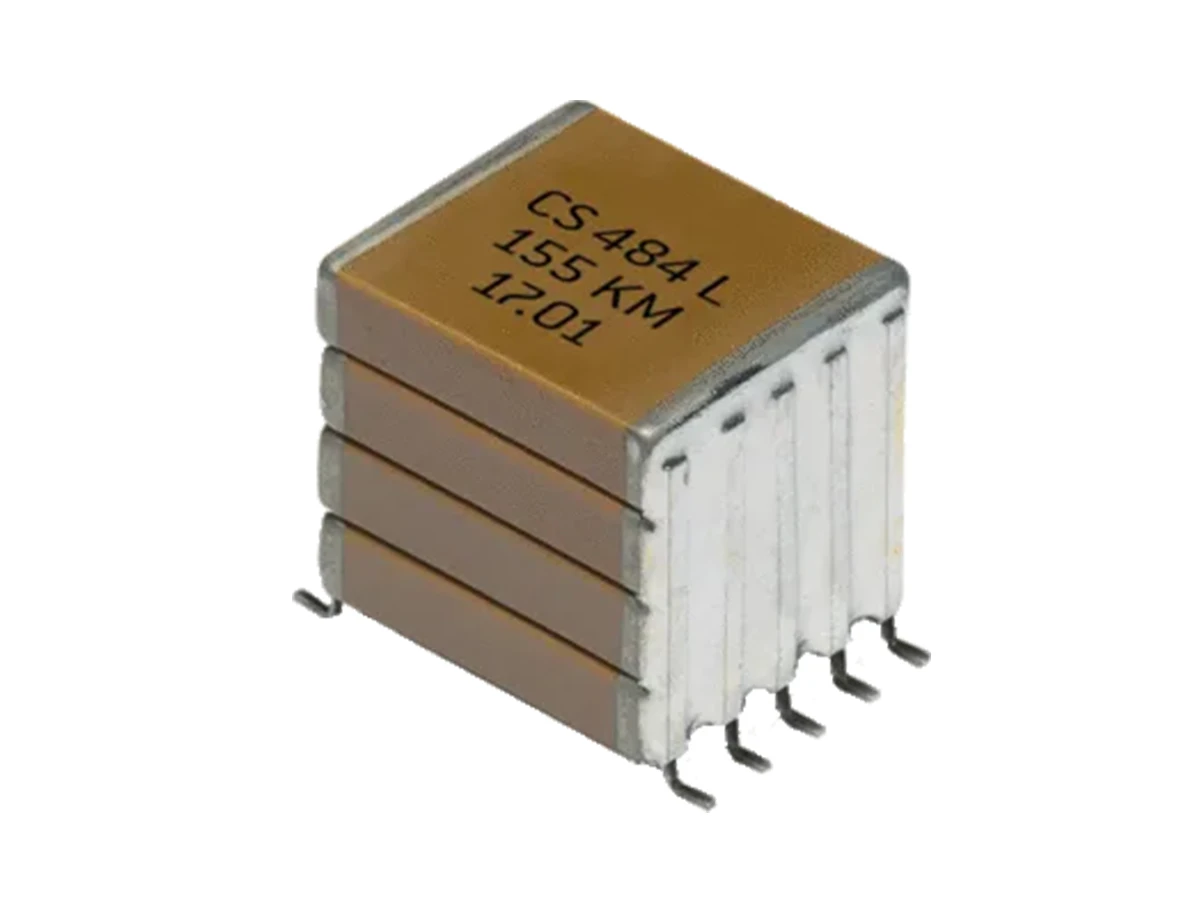

Exxelia’s CS Series ceramic capacitors are high-voltage, stacked components designed for demanding power applications. They support voltages from 1kV to 10kV and capacitance from 220pF to 15µF. With excellent charge/discharge resistance and voltage stability, they operate from -55°C to 125°C. Available in NPO, X7R, and C4XX dielectrics, they are suitable for power supplies, voltage multipliers, and pulse applications.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

High voltage, up to 10kV
Stacked ceramic capacitors
Excellent resistance to charge/discharge
Excellent voltage stability
NPO, X7R, or C4XX dielectric available: (-2,200 ± 500) ppm/°C
Former references: CS282, CS283, CS284, CS285, CS287, CS288, CS289, CS487, CS488, CS489

Capacitance: 220pF ~ 15µF
Voltage Rated DC: 1kV ~ 10kV
Operating Temp: -55°C ~ 125°C
Tolerance: ±2%, ±5%, ±10%, ±20%
Mounting: DIL
Case Size: 2220, 2825, 3333, 4040, 5440, 5550, 6560, 11283, 16080
Dielectric: NPO, X7R, C4XX
RoHS: ROHS, Non ROHS

Description

The CS Series series ceramic capacitors featuring high discharge rate deliver high‑level performance in the most demanding applications.

Applications

Power supplies
Voltage multipliers
Pulse applications

Datasheet

CS Series Datasheet

Manufacturer Info

Ceramic Capacitors
