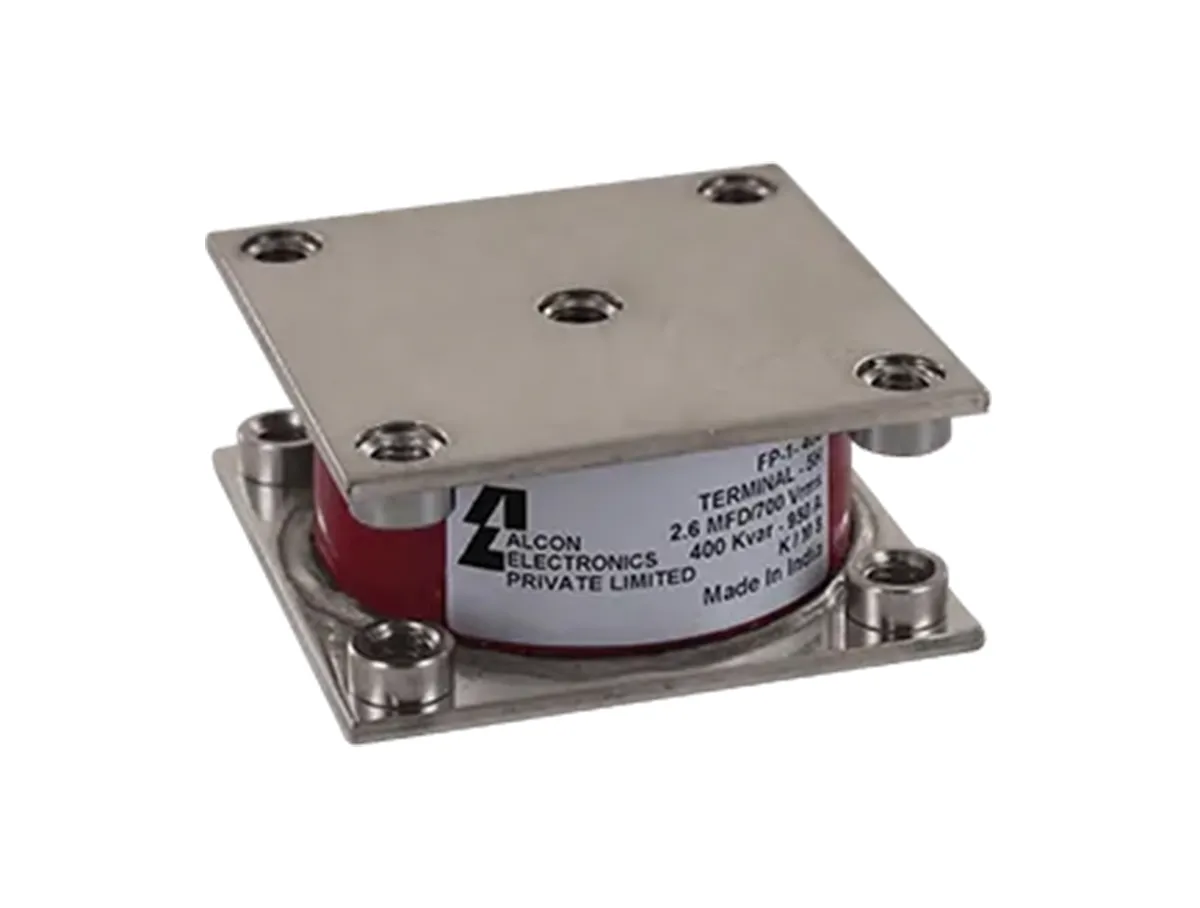

FP-1-400

• Conduction cooled
• Polypropylene dielectric
• Self-healing
• Operating frequency up to 1000 KHz
• Maximum operating core temperature: 85°C
• Max Current: 1000 IRMS
• Max Power: 400 KVAR
• Frequency Range: 50 – 433 KHZ
• ESL: <5 nH
• Max Operating Temp.: Core Temp. 85°C
• Size: 34 mm X 78 mm X 78 mm

• Capacitance: 330nF ~ 5µF
• Voltage Rated AC: 500Vac ~ 1000Vac
• Operating Temp: 85°C
• Tolerance: ±10%
• Dielectric: Polypropelene (PP)
• RoHS: Non ROHS

Applications:

• Induction Heating
• Electric Cars
• Medical Imaging
• EV Wireless Chargers
• Resonant Circuits

Datasheet

• FP-1-400 Datasheet

Manufacturer Info

• Film & Mica Capacitors
