FP-10J-800

Name: FP-10J-800 | MSA Components GmbH
SKU: 42b35f272e5c

SKU: 42b35f272e5c Categories: Capacitors, Film and Mica Capacitors, Power Capacitors Brand: Exxelia SAS

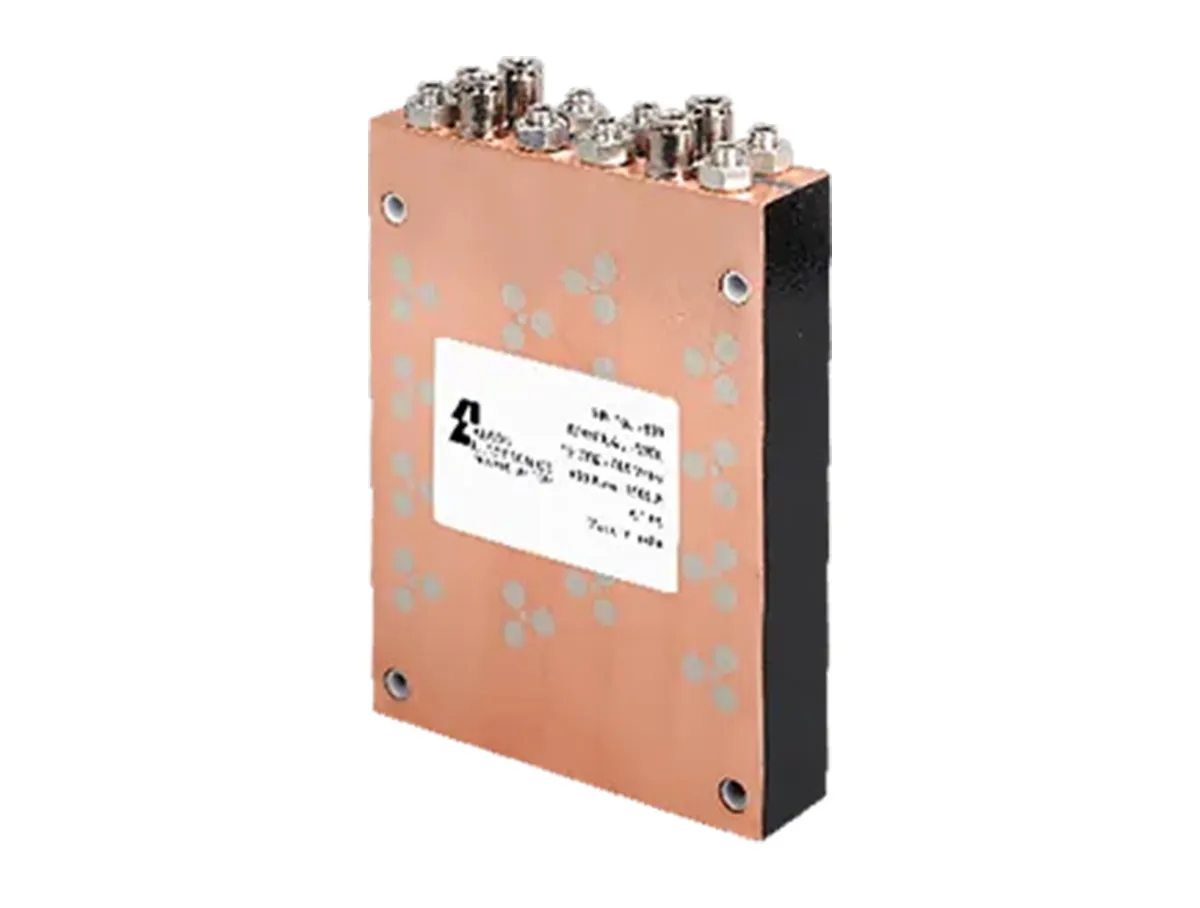

The Exxelia FP-10J-800 is a water-cooled, self-healing polypropylene capacitor designed for high-frequency applications. It offers low stray inductance, operation up to 700 kHz, 1500 IRMS current, and 800 KVAR, supporting induction heating, electric vehicles, medical imaging, wireless charging, and resonant circuits.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Water cooled
Polypropylene dielectric
Self-healing
Low Stray inductance
Operating frequency up to 700 KHz
Maximum operating core temperature 85°C
Max Current: 1500 IRMS
Max Power: 800 KVAR
Frequency Range: 31 – 716 KHz
ESL: Low Stray Inductance
Size: 30.5 mm × 160 mm × 120 mm

Capacitance 400nF ~ 19µF
Voltage Rated AC 400Vac ~ 1000Vac
Operating Temp 85°C
Tolerance ±10%
Dielectric Polypropylene (PP)
RoHS ROHS

Typical applications:

Induction Heating
Electric Cars
Medical Imaging
EV Wireless Chargers
Resonant Circuits

Datasheet

FP-10J-800 Datasheet
