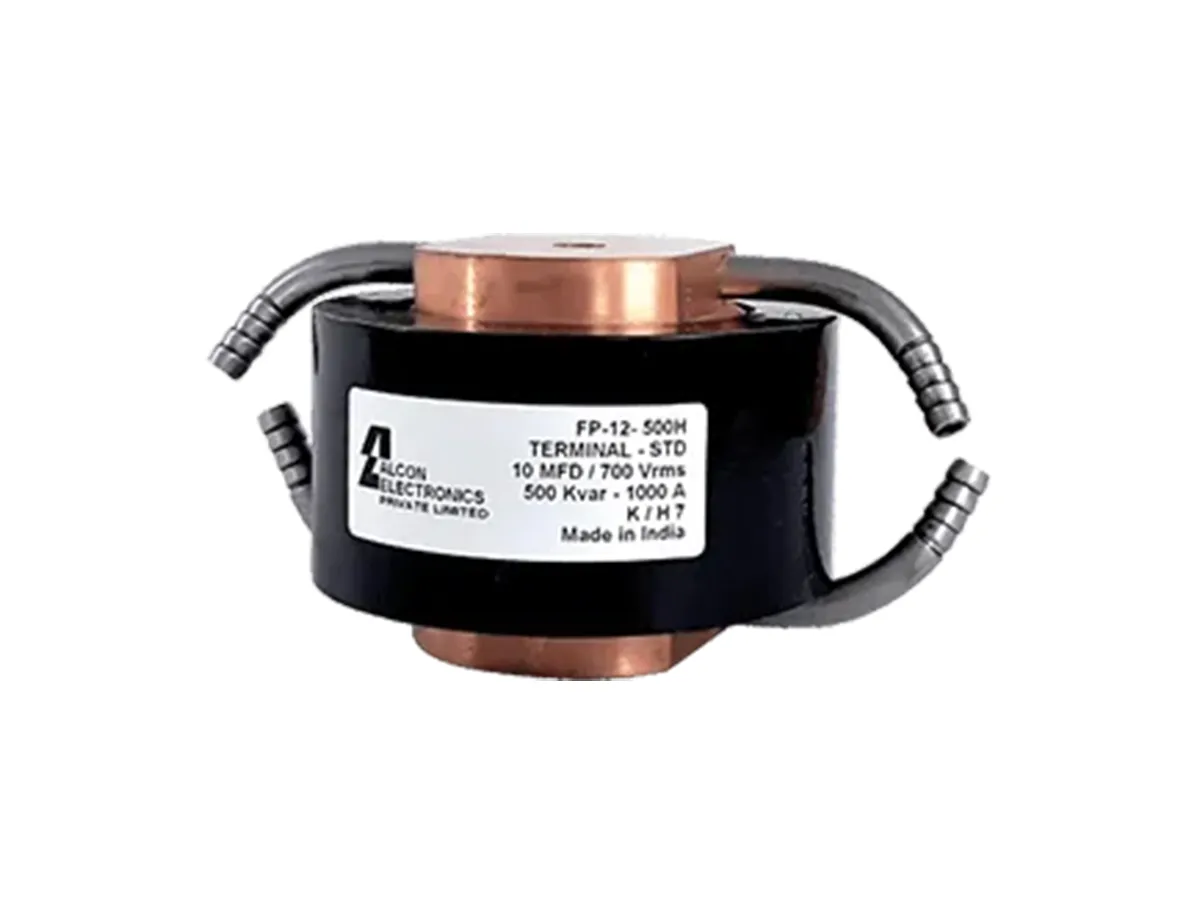

FP-12-500H

• Water cooled
• Polypropylene dielectric
• Self-healing
• Operating frequency up to 100 KHz
• Maximum operating core temperature 85°C
• Max Current: 1000 IRMS
• Max Power: 500 KVAR
• Frequency Range: 9 – 96 KHz
• ESL: Low Stray Inductance
• Size: 80 mm × 71.5 mm, 102 mm × 71.5 mm, 88 mm × 71.5 mm, 95 mm × 71.5 mm

• Capacitance 1.2nF ~ 37µF
• Voltage Rated AC 500Vac ~ 1100Vac
• Operating Temp 85°C
• Tolerance ±10%
• Dielectric Polypropylene (PP)
• RoHS ROHS

Typical applications:

• Induction Heating
• Electric Cars
• Medical Imaging
• EV Wireless Chargers
• Resonant Circuits
