FP-31-1000

Name: FP-31-1000 | MSA Components GmbH
SKU: 5aa774c6c5c8

SKU: 5aa774c6c5c8 Categories: Capacitors, Film and Mica Capacitors, Power Capacitors Brand: Exxelia SAS

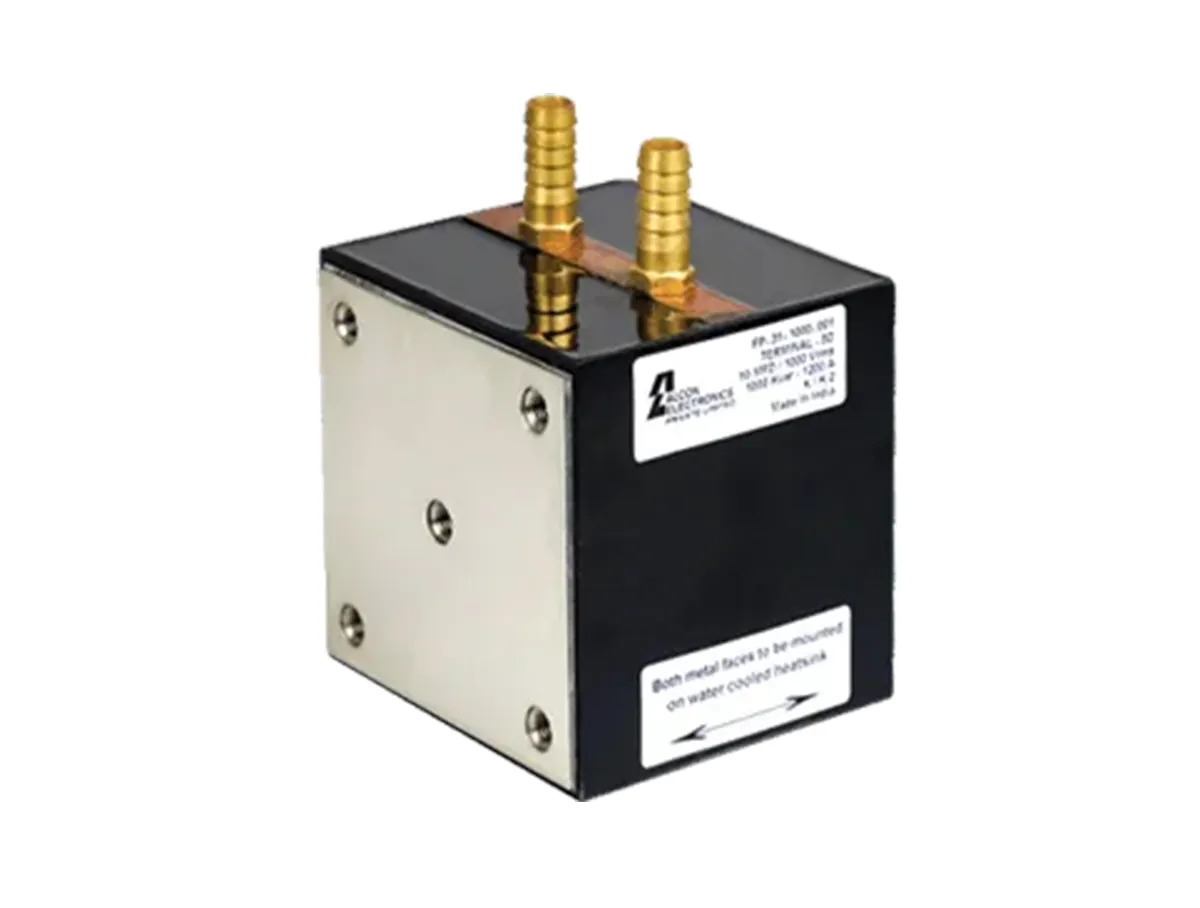

The Exxelia FP-31-1000 is a high-power polypropylene capacitor featuring conduction and water cooling, self-healing construction, and low stray inductance. It supports up to 1000 kVAR, 1250 A RMS, 100 kHz operation, 5nF–20µF capacitance, and 800–1200Vac ratings.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Conduction cooled + water cooled
Polypropylene dielectric
Self-healing
Operating frequency up to 100 KHz
Maximum operating core temperature 85°C
Max Current: 1250 IRMS
Max Power: 1000 KVAR
Frequency Range: 10 – 32 KHZ
ESL: Low Stray Inductance
Size: 100 mm X 100 mm X 102 mm

Capacitance: 5nF ~ 20µF
Voltage Rated AC: 800Vac ~ 1200Vac
Operating Temp: 85°C
Tolerance: ±10%
Dielectric: Polypropylene (PP)
RoHS: ROHS

Typical applications:

Induction Heating
Electric Cars
Medical Imaging
EV Wireless Chargers
Resonant Circuits

Datasheet

FP-31-1000 Datasheet
