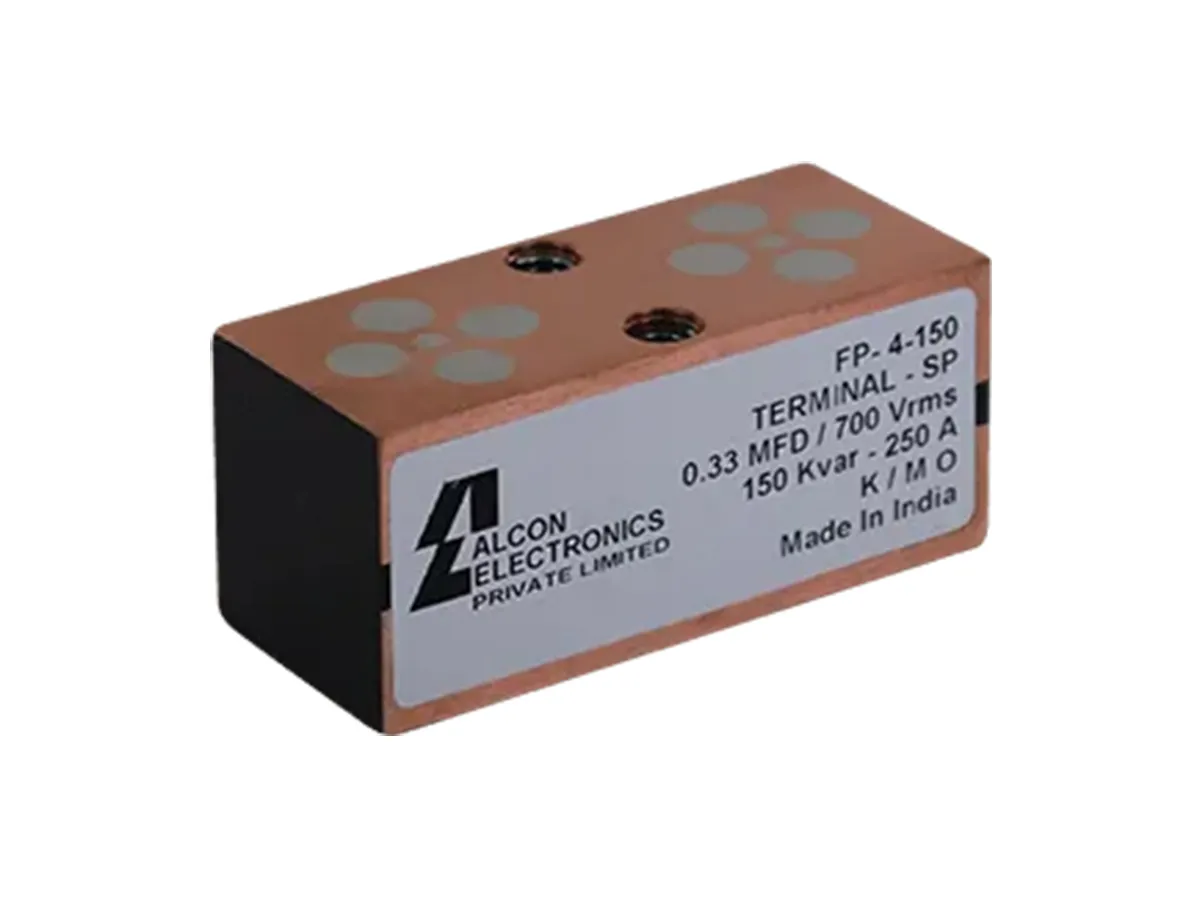

FP-4-150-SM/SP

• Conduction cooled
• Polypropylene dielectric
• Self-healing
• Operating frequency up to 700 KHz
• Maximum operating core temperature: 85°C
• Max Current: 400 IRMS
• Max Power: 150 KVAR
• Frequency Range: 63 – 700 KHz
• ESL: < 3 nH
• Size: 30.2 mm × 30 mm × 68 mm

• Capacitance: 50nF ~ 2.5nF
• Voltage Rated AC: 400Vac ~ 1000Vac
• Operating Temp: 85°C
• Tolerance: ±10%
• Dielectric: Polypropylene (PP)

Typical applications:

• Induction Heating
• Electric Cars
• Medical Imaging
• EV Wireless Chargers
• Resonant Circuits
