FP-5X-200-2C

Name: FP-5X-200-2C | MSA Components GmbH
SKU: 7c0e3a00b748

SKU: 7c0e3a00b748 Categories: Capacitors, Film and Mica Capacitors, Power Capacitors Brand: Exxelia SAS

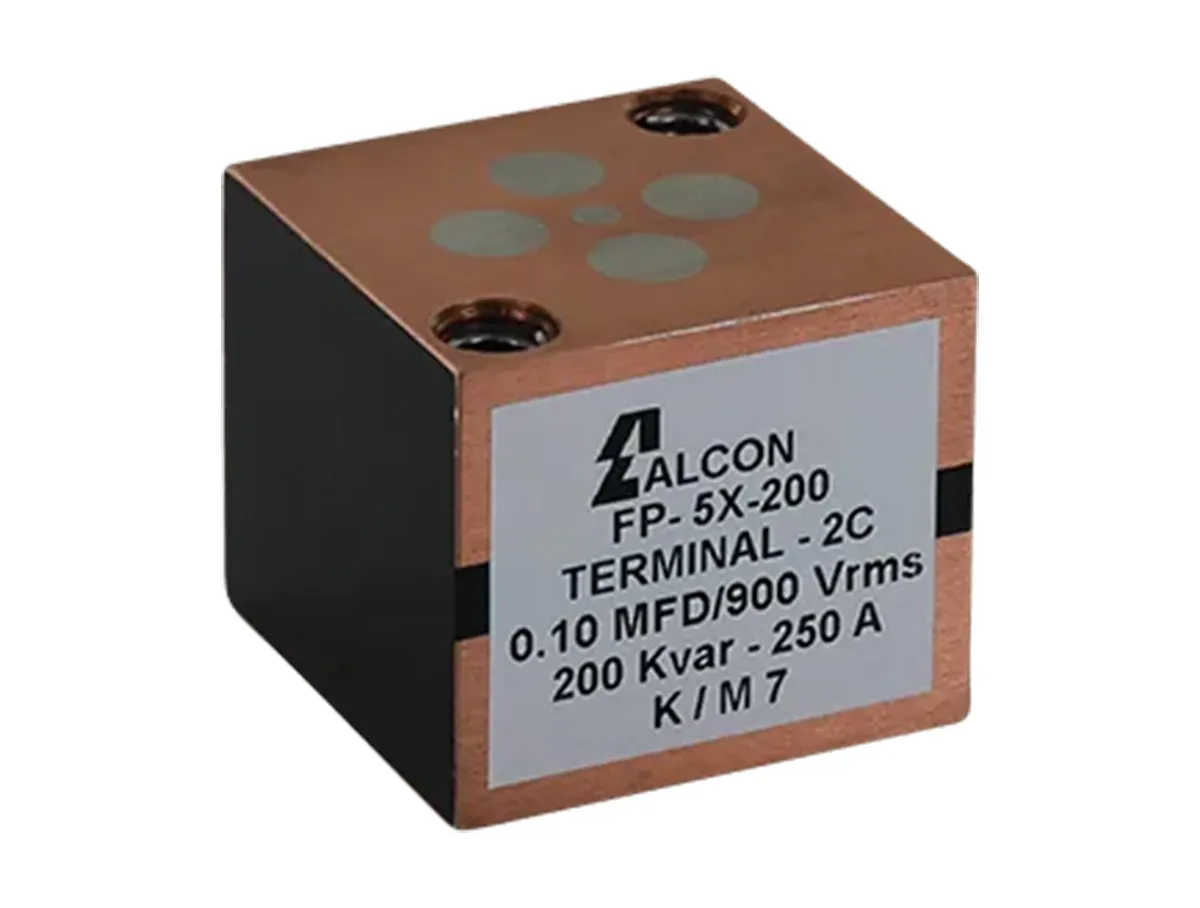

The Exxelia FP-5X-200-2C is a conduction-cooled polypropylene power capacitor featuring self-healing technology and operation up to 1400 kHz. It supports 500–1100 Vac, 25 nF–1.2 µF capacitance, 200 kVAR power, and 400 A RMS current for high-frequency applications.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Conduction cooled
Polypropylene dielectric
Self-healing
Operating frequency up to 1400 KHz
Maximum operating core temperature 85°C
Max Current: 400 IRMS
Max Power: 200 KVAR
Frequency Range: 106 – 1414 KHz
ESL: < 3 nH
Size: 30.2 mm X 35 mm X 35 mm

Capacitance: 25nF ~ 1.2nF
Voltage Rated AC: 500Vac ~ 1100Vac
Operating Temp: 85°C
Tolerance: ±10%
Dielectric: Polypropelene (PP)
RoHS: ROHS

Typical applications:

Induction Heating
Electric Cars
Medical Imaging
EV Wireless Chargers
Resonant Circuits

Datasheet

FP-5X-200-2C Datasheet
