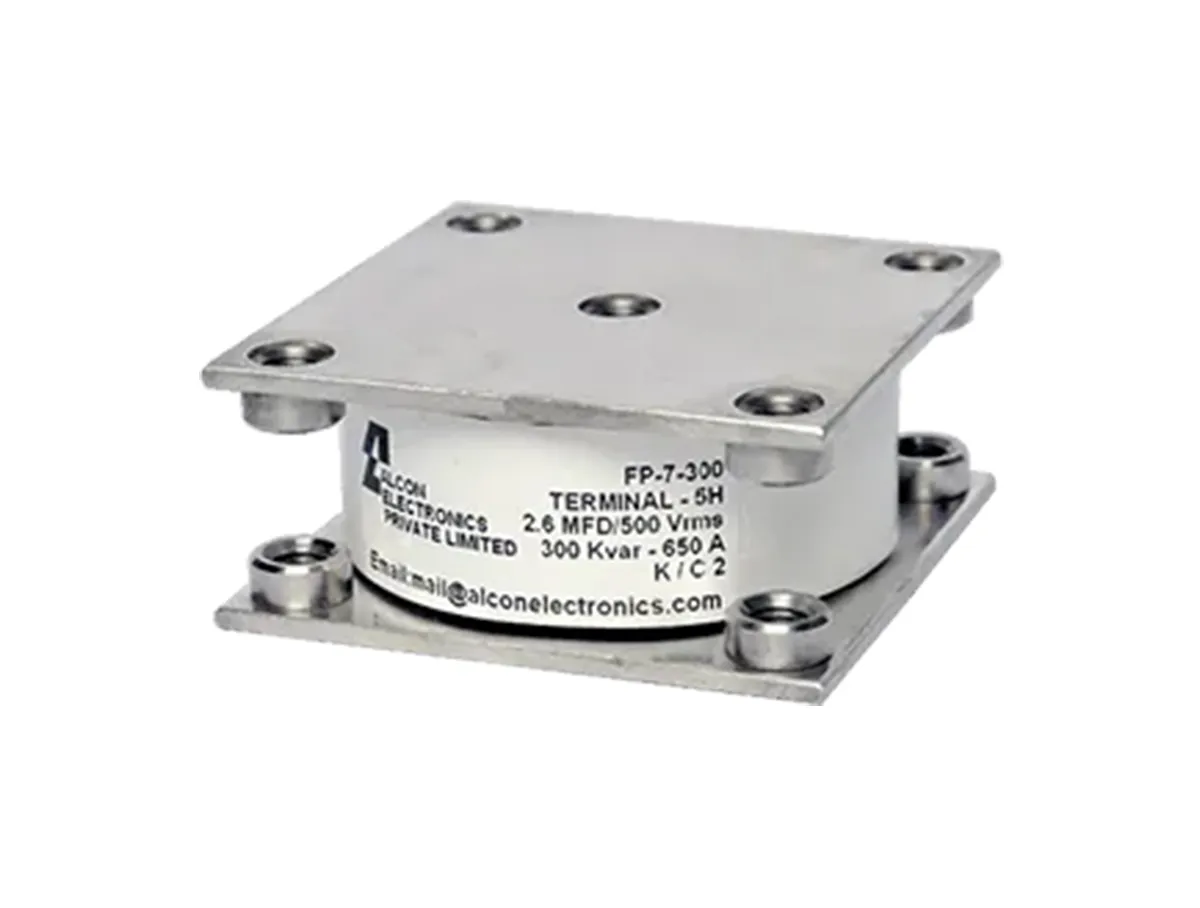

FP-7-300

• Conduction cooled
• Polypropylene dielectric
• Self-healing
• Operating frequency up to 700 KHz
• Maximum operating core temperature 85°C
• Max Current: 800 IRMS
• Max Power: 300 KVAR
• Frequency Range: 59 – 649 KHz
• ESL: < 5 nH
• Size: 34 mm X 78 mm X 78 mm

• Capacitance: 100nF ~ 5nF
• Voltage Rated AC: 400Vac ~ 1000Vac
• Operating Temp: 85°C
• Tolerance: ±10%
• Dielectric: Polypropelene (PP)
• RoHS: ROHS

Typical applications:

• Induction Heating
• Electric Cars
• Medical Imaging
• EV Wireless Chargers
• Resonant Circuits

Datasheet

•
  FP-7-300 Datasheet

Manufacturer Info

• Film & Mica Capacitors
