FP-8C-1500

Name: FP-8C-1500 | MSA Components GmbH
SKU: 23b96e804f69

SKU: 23b96e804f69 Categories: Capacitors, Film and Mica Capacitors, Power Capacitors Brand: Exxelia SAS

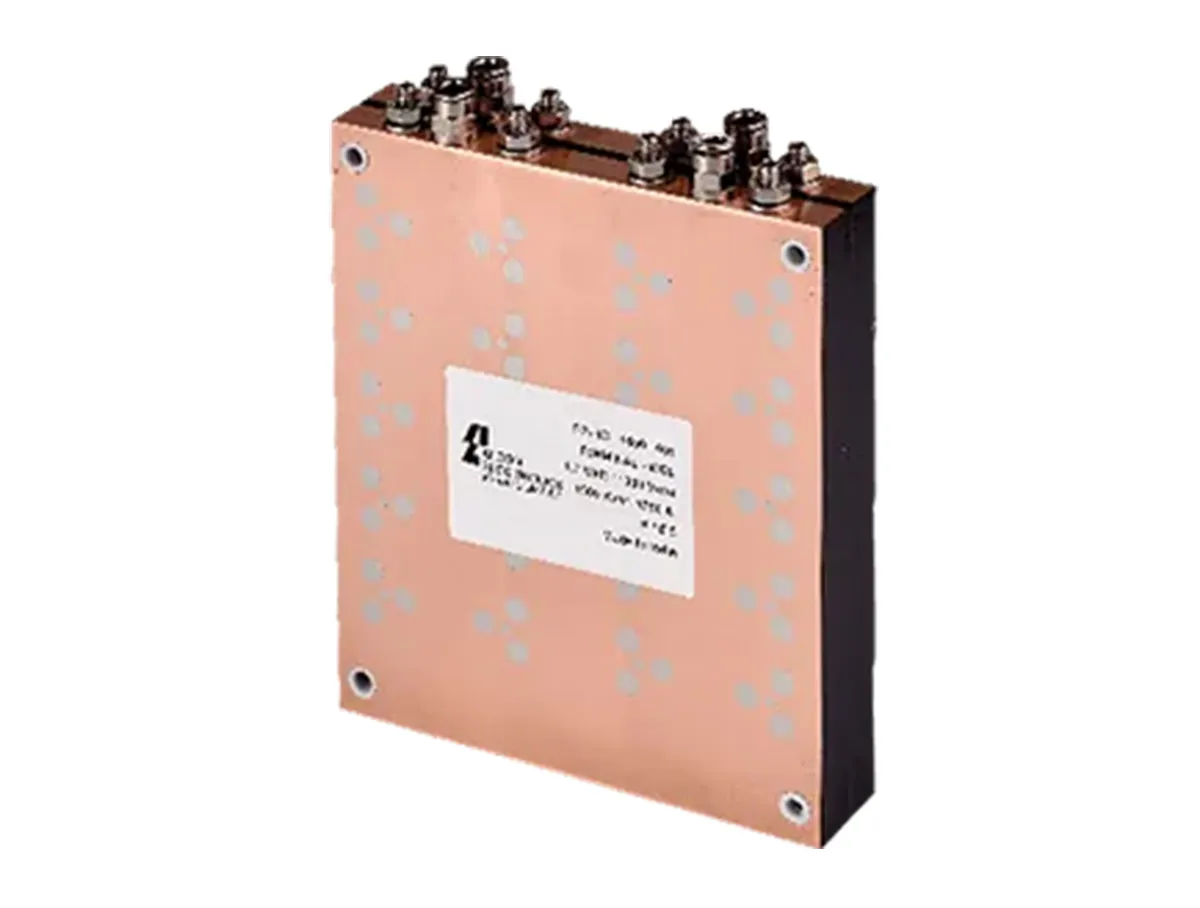

Exxelia’s FP-8C-1500 is a water-cooled, self-healing polypropylene power capacitor for high-frequency applications. It operates up to 700 kHz, supports 24–500 nF, 500–1000 Vac, 3000 A RMS, and 1500 kVAR, with low stray inductance.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Water cooled
Polypropylene dielectric
Self-healing
Low stray inductance
Operating frequency up to 700 KHz
Maximum operating core temperature 85°C
Max Current: 3000 IRMS
Max Power: 1500 KVAR
Frequency Range: 41 – 651 KHz
ESL: Low stray inductance
Size: 30.5 mm X 175 mm X 150 mm

Capacitance: 500nF ~ 24nF
Voltage Rated AC: 500Vac ~ 1000Vac
Operating Temp: 85°C
Tolerance: ±10%
Dielectric: Polypropelene (PP)
RoHS: ROHS

Typical applications:

Induction Heating
Electric Cars
Medical Imaging
EV Wireless Chargers
Resonant Circuits

Datasheet

FP-8C-1500 Datasheet
