HTA (HT78 & HT86 & HT97)

Name: HTA (HT78 & HT86 & HT97) | MSA Components GmbH
SKU: 789bd3813073

SKU: 789bd3813073 Categories: Capacitors, Film and Mica Capacitors, High Voltage Brand: Exxelia SAS

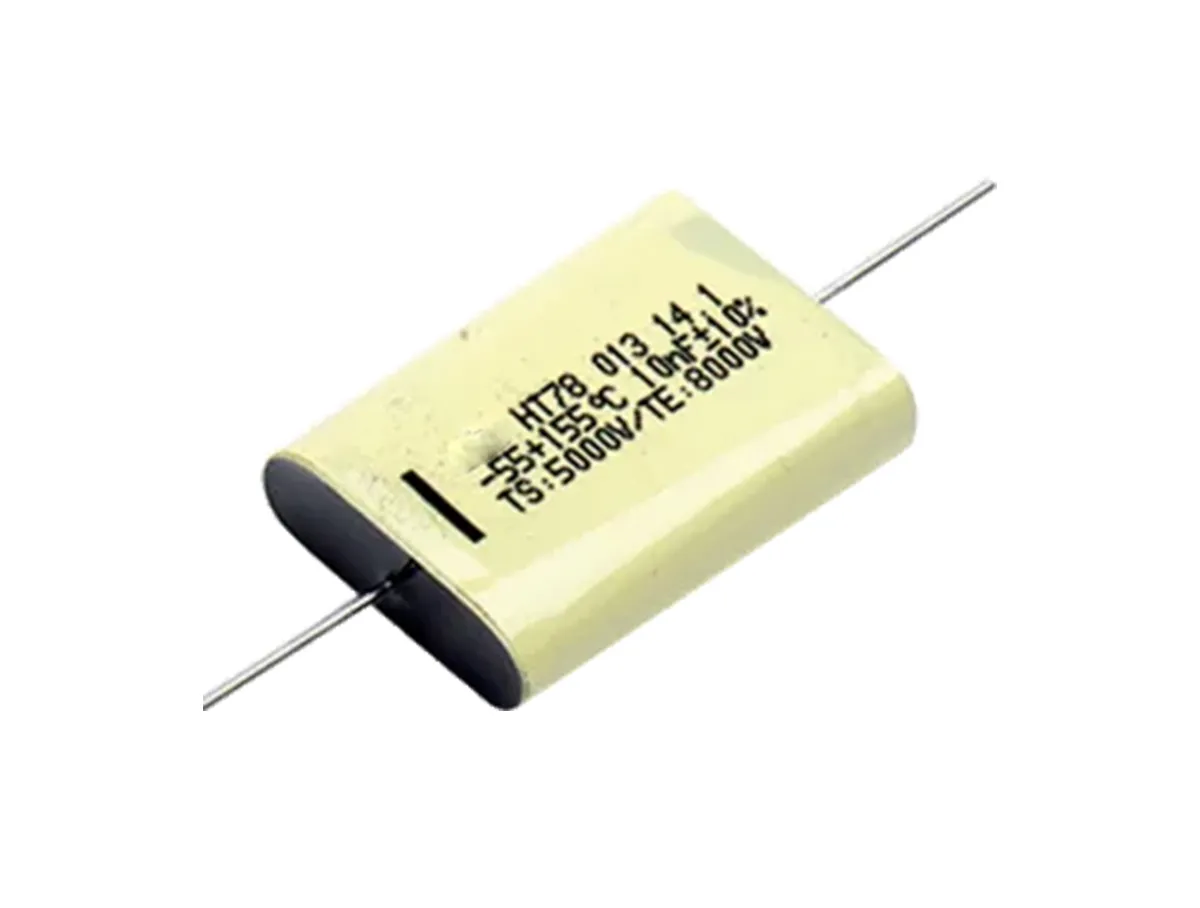

The Exxelia HTA (HT78/HT86/HT97) series comprises high-voltage mica capacitors featuring non-inductive construction, epoxy sealing, and polyester insulation. They offer 0.1nF–2.2nF capacitance, 630V–20kV DC ratings, and operate from −55°C to 155°C for demanding radar, power, aerospace, and oil-exploration applications.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Composite reconstituted mica
Epoxy resin impregnated
Metal foils
Non-inductive
Polyester wrapped
Epoxy resin sealed
Formerly under the reference: HT 78, HT 78 P, HT 86, HT 86 P, HT 97, HT 97 P, HT 97PS

Capacitance: 0.1nF ~ 2.2nF
Operating Temp: -55°C ~ 155°C
Voltage Rated DC: 630V ~ 20000V
Tolerance: ±5%, ±10%, ±20%
Dielectric: Mica
RoHS: ROHS

Description

The HTA series film capacitors manufactured in France, featuring polyester (PET) deliver high‑level performance in the most demanding applications.

QPL qualification obtained for HT 97PS since December 2024

Typical applications:

Ignition and power transmission, ECM & HV TWT power supplies
Airborne or surface radar, missile HV transmitters
Oil & Gas exploration equipment

Datasheet

HT72 Datasheet
