KP-3C

Name: KP-3C | MSA Components GmbH
SKU: e5e0f6a24756

SKU: e5e0f6a24756 Categories: Capacitors, Film and Mica Capacitors, IGBT Snubbers Brand: Exxelia SAS

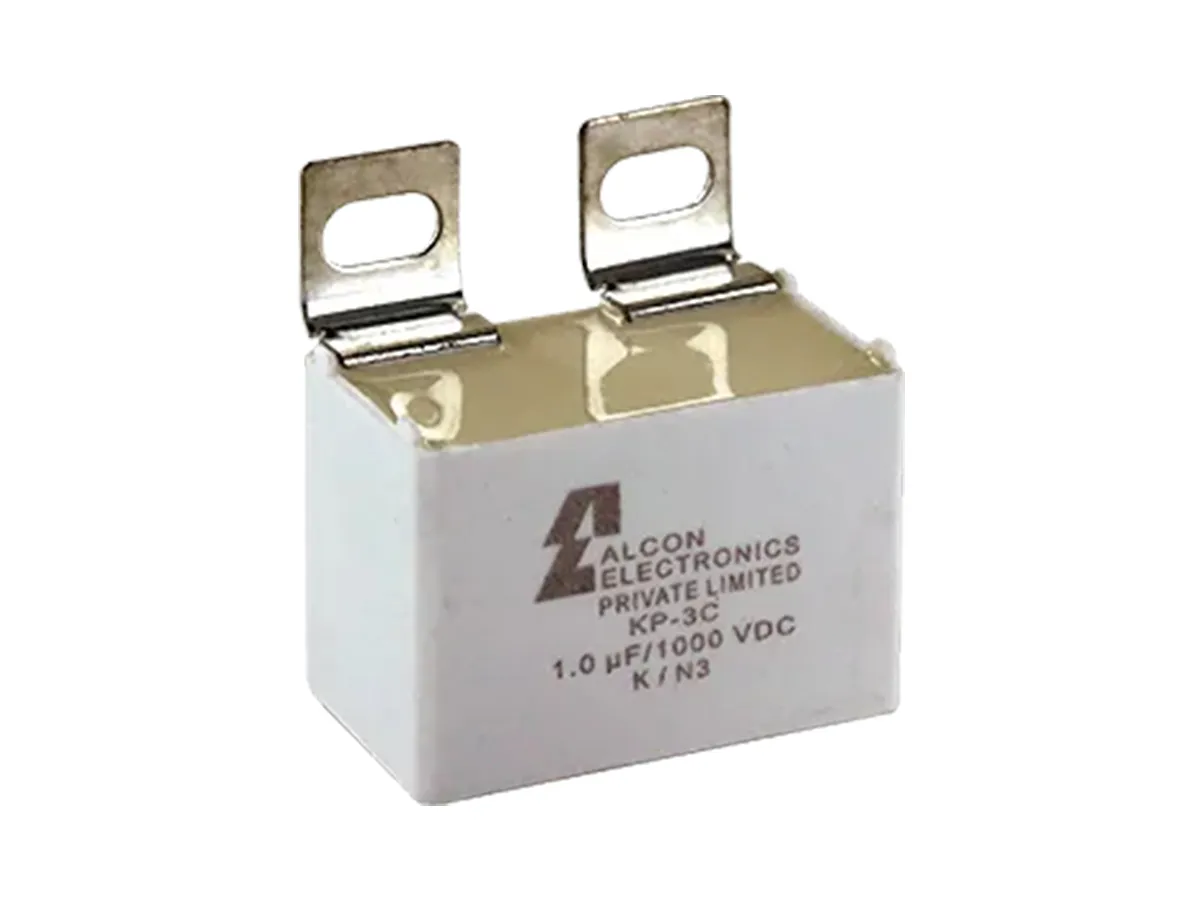

Exxelia’s KP-3C is an IGBT snubber capacitor featuring high dv/dt capability, low ESR, and low-loss polypropylene dielectric. Its impregnated construction eliminates corona, supporting IGBT protection, snubber networks, and low- to medium-frequency tuning or resonant circuits.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

High DV/DT
Low ESR
Low Loss Polypropylene Dielectric
Impregnated Elements Eliminate Corona
Mounting Pitch: 22.5 mm to 48 mm
Construction: Extended Foil Electrodes and Polypropylene Film Dielectric, Impregnated

Capacitance: 100nF ~ 3nF
Voltage Rated DC: 1000V ~ 2000V
Operating Temp: -40°C ~ 85°C
Dielectric: Polypropylene (PP)
Tolerance: ±5%, ±10%
RoHS: ROHS

Typical applications:

IGBT Protection Circuits
Snubber Networks
Low Frequency Tuning Circuits

Datasheet

KP-3C Datasheet
