MKR-9

Name: MKR-9 | MSA Components GmbH
SKU: 0fd389b59aad

SKU: 0fd389b59aad Categories: Capacitors, Film and Mica Capacitors, IGBT Snubbers Brand: Exxelia SAS

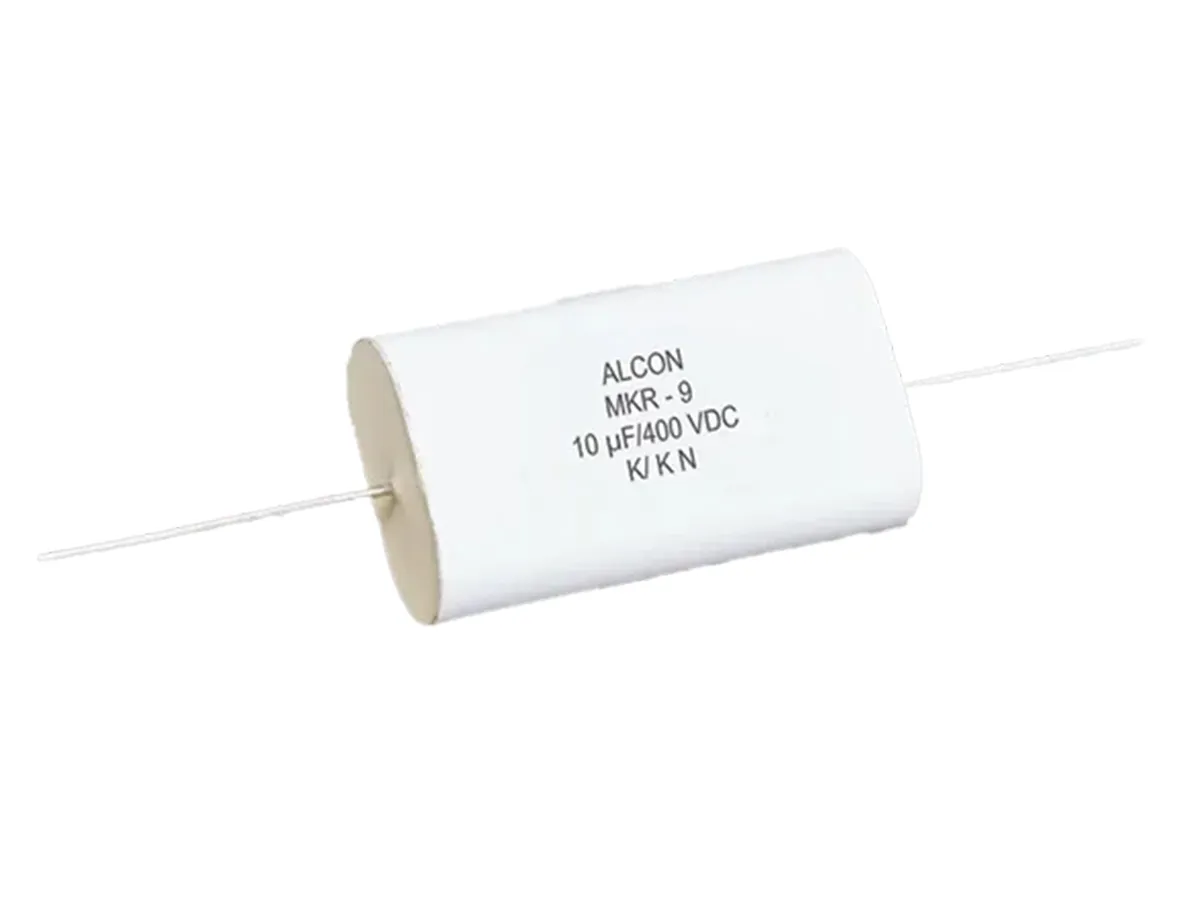

The Exxelia MKR-9 is a self-healing polypropylene film capacitor designed for IGBT snubber and high-frequency power applications. It offers low ESR, high dv/dt capability, 1–40 nF capacitance, 400–3000 VDC ratings, and operation up to 85°C.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Self-healing property
High DV/DT
Low ESR
Low loss polypropylene dielectric
IGBT protection circuits
Snubber networks
Energy conversion and control in power electronics
Protection circuits in SMPS

Capacitance 1nF ~ 40nF
Voltage Rated DC 400V ~ 3000V
Operating Temp 85°C
Dielectric Polypropylene (PP)
Tolerance ±5%, ±10%

Typical applications:

High Frequency Applications Like PWM Inverters, On-Line UPS, Telecom SMPS, Solar Inverters, Frequency Converters.

Datasheet

MKR-9 Datasheet
