MP-4A

Name: MP-4A | MSA Components GmbH
SKU: e11b73557cfa

SKU: e11b73557cfa Categories: Capacitors, Film and Mica Capacitors, IGBT Snubbers Brand: Exxelia SAS

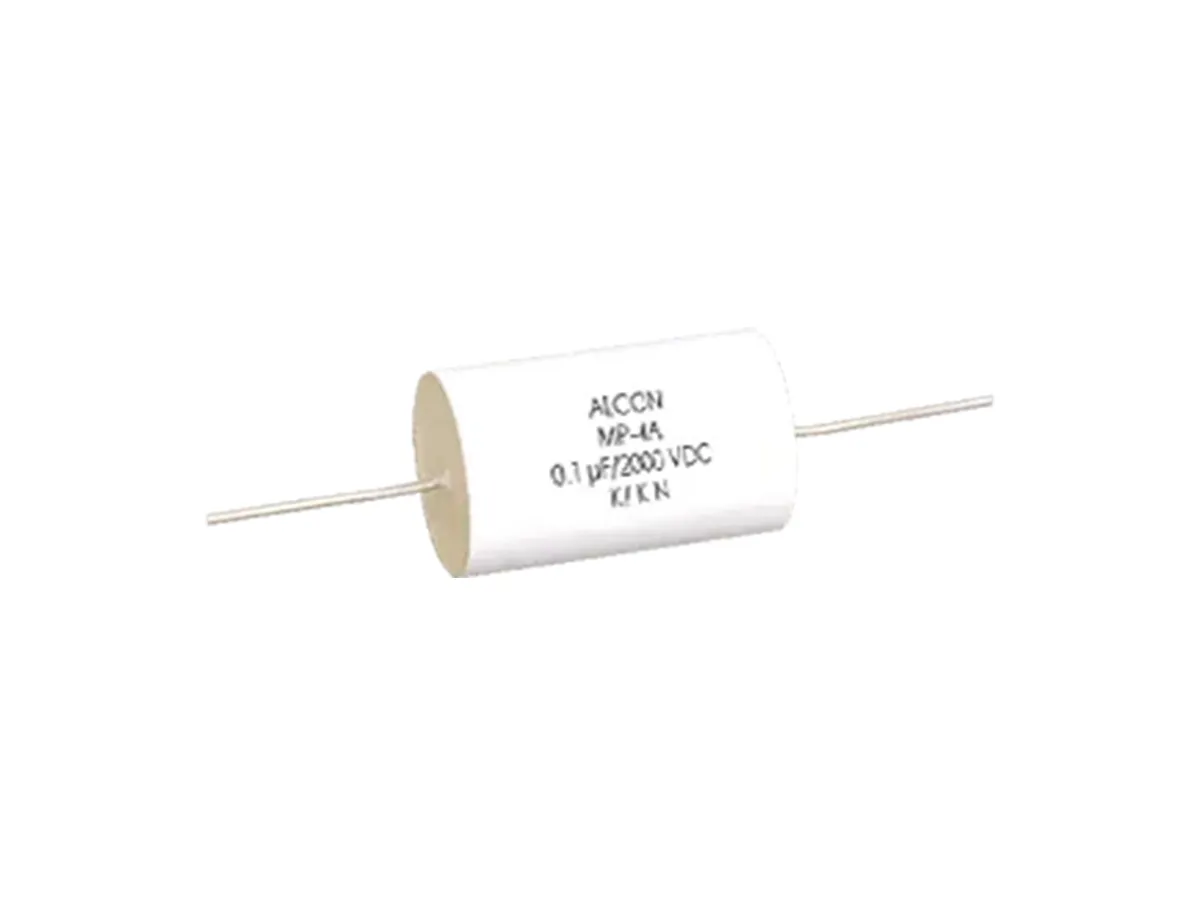

The Exxelia MP-4A is a low-ESR polypropylene film capacitor designed for IGBT snubber applications. It provides high-frequency and high-voltage capability, high peak current, and high DV/DT, supporting snubber circuits, speed control, and SMPS applications.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Low loss polypropylene dielectric
High frequency & high voltage capability
High peak current
High DV/DT
Low ESR
Mounting Pitch: 22.5 mm to 48 mm
Construction: Extended Double Metallised Polyester Electrodes with Metallised Polypropylene Dielectric Internal Series Connection

Capacitance 15nF ~ 5µF
Voltage Rated DC 600V ~ 3000V
Operating Temp -55°C ~ 105°C
Dielectric Polyester (PET), Polypropylene (PP)
Tolerance ±5%, ±10%
RoHS ROHS

Description

Extended double Metallized polyester electrodes with Metallized polypropylene dielectric internal series connection

Typical applications:

Snubber Circuits
Speed Control
SMPS

Datasheet

MP-4A Datasheet
