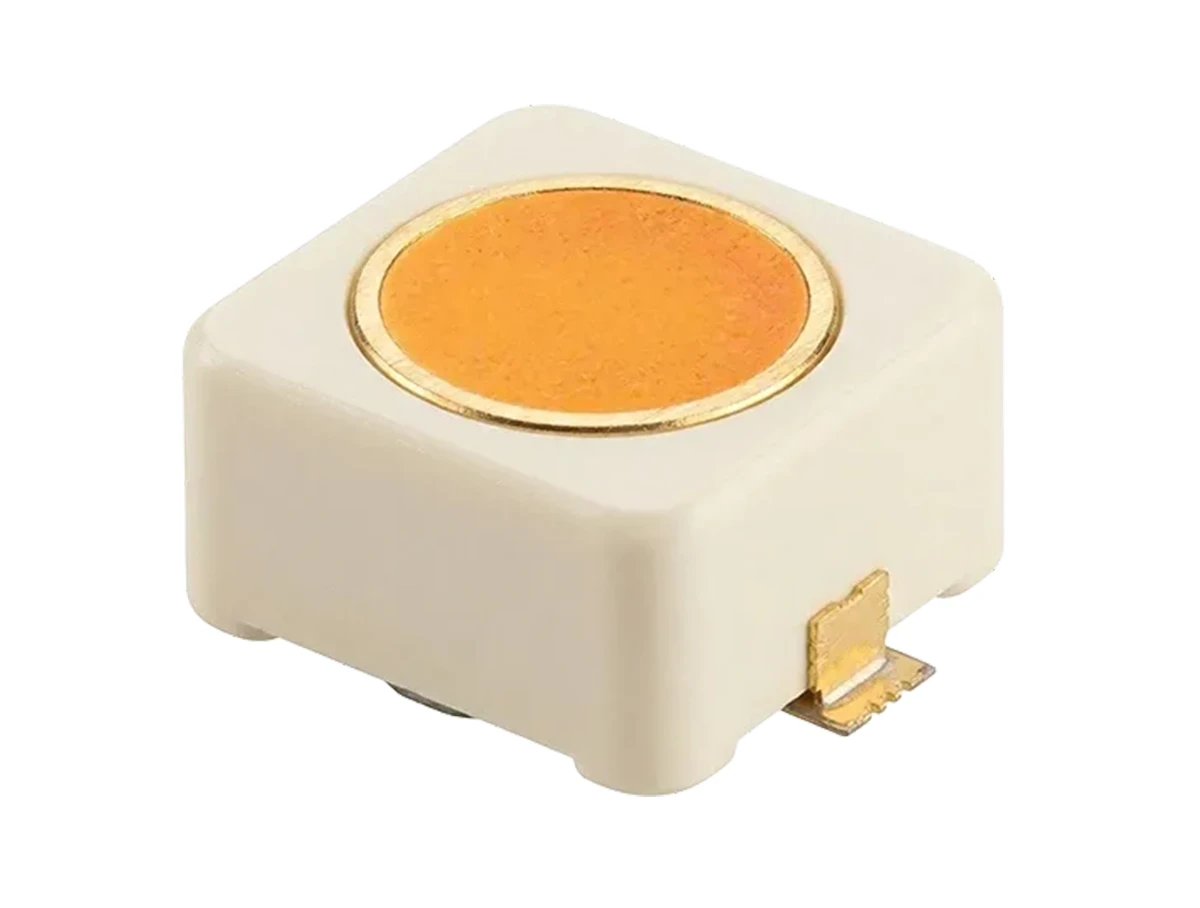

SMD hermetic ceramic trimmer capacitors AT 23XXG series

Name: SMD hermetic ceramic trimmer capacitors AT 23XXG series | MSA Components GmbH
SKU: 9c36796a55c9

SKU: 9c36796a55c9 Categories: Capacitors, Ceramic Capacitors, Trimmer Capacitors Brand: Exxelia SAS

The Exxelia AT 23XXG Series features compact, hermetic ceramic trimmer capacitors for precise RF tuning. With high resonance frequency, very good Q, gold-plated terminations, and non-magnetic construction, they provide 0.6–22pF capacitance, 250–500V ratings, and -55°C to 125°C operation.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Package Type: Very compact alumina housing.
Terminations: Gold plated.
Non-Magnetic: Ideal for interference-sensitive applications.
RF Characteristics: High resonance frequency and very good Q (Quality Factor).
Max Soldering Profile: 260°C for 10 seconds maximum.
Delivery Format: Provided on 12 mm tape and reel.

Capacitance: 0.6pF ~ 22pF
Voltage Rated DC: 250V ~ 500V
Operating Temp: -55°C ~ 125°C
Mounting: SMD
RoHS: ROHS
Dielectric: Ceramic

Description

Durability: Built to withstand harsh environments.

Chemical Resistance: Resistant to penetration of solder fluxes and cleaning solvents.

Typical applications

RF power amplifier, LC filters, military and avionics equipment, medical devices, DR/Crystal Oscillators, broadband wireless LAN, telemetry

Datasheet

SMD hermetic ceramic trimmer capacitors AT 23XXG series Datasheet
