Termination Regulator – DDR2 TR (3DPM0237)

Name: Termination Regulator - DDR2 TR (3DPM0237) | MSA Components GmbH
SKU: 73b7cf34da37

SKU: 73b7cf34da37 Categories: RAD HARD / RAD TOLERANT, Termination Regulator Brand: 3D Plus

DDRII Memory uses a high speed data bus which has to be terminated. Termination is made by means of a voltage regulator which shall sink and source current depending on bus demand while maintaining regulated voltage.

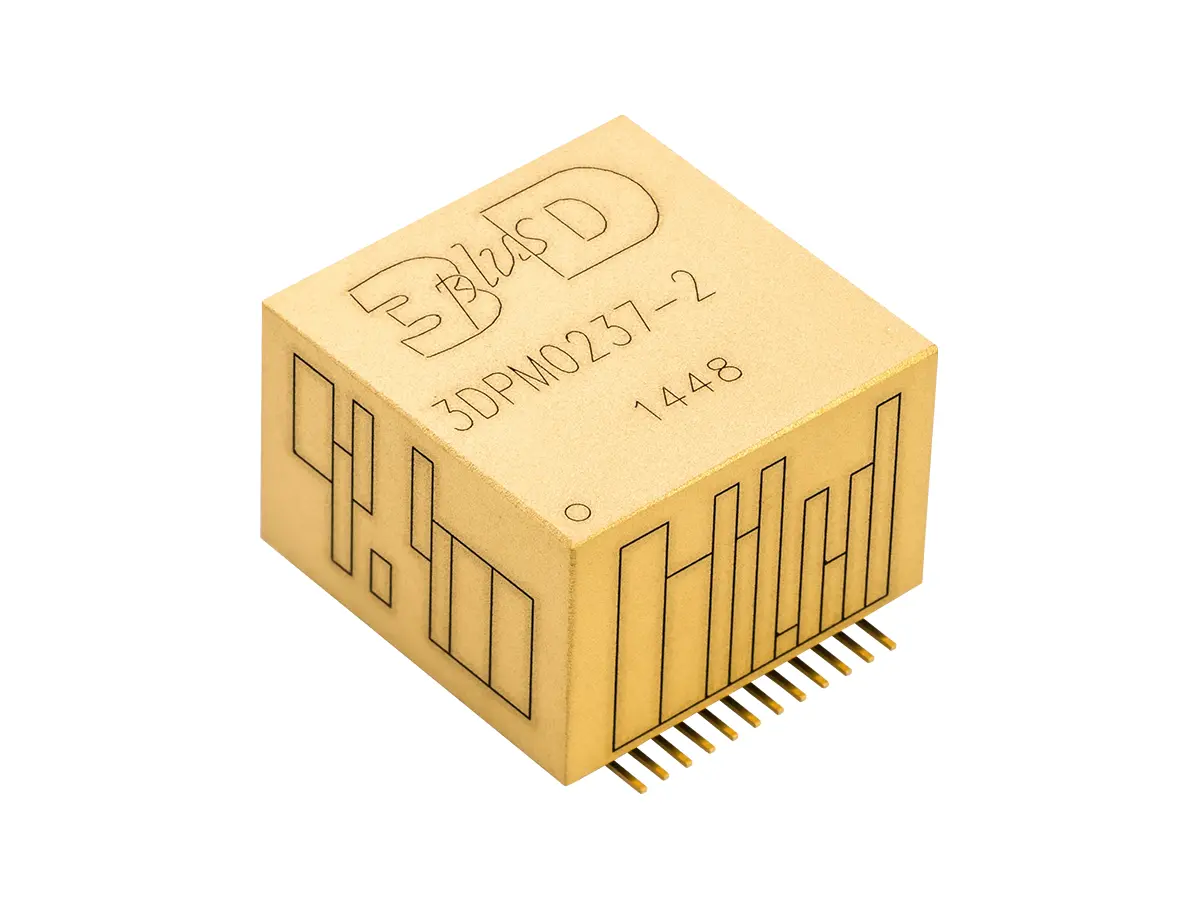

The 3DPM0237-2 is a sink/source Double Data Rate (DDR) Termination Regulator specifically esigned for low input voltage, low-noise and high reliability systems where space is a key consideration. The 3DPM0237-2 maintains a fast transient and supports a remote sensing function and all power requirements for DDRII VTT bus.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Source and sink current capability: ±1 A
Regulates the VTT output voltage to Ref_IN
Reference voltage configurable through Ref_IN
Buffered reference voltage output (Ref_OUT)
Remote VTT voltage sensing (VTT_Sense)
Enable command to place the VTT output in high-impedance state (Suspend-to-RAM mode)
Thermal protection against overtemperature and short-circuit conditions
VTT soft-start function
No external output capacitors required
Compliant with JEDEC standard JESD8-15A
Tightly regulated VTT output voltage with ±40 mV ripple
Auxiliary supply required to power the internal control circuits

Radiation characteristics
- Total Ionizing Dose (TID): > 50 krad(Si)
- Single Event Latch-up (SEL): LET > 80 MeV·cm²/mg
- Single Event Transient (SET): immune above 80 MeV·cm²/mg
Operating temperature: -40 °C to +105 °C
Package: SOP24 (20 × 20 × 15 mm)
ITAR free

Description

The 3DPM0237-2 is available in a thermallyefficient package.
