Termination Regulator – DDR2 TR (3DPM0318)

Name: Termination Regulator - DDR2 TR (3DPM0318) | MSA Components GmbH
SKU: d8eb2316dfd2

SKU: d8eb2316dfd2 Categories: RAD HARD / RAD TOLERANT, Termination Regulator Brand: 3D Plus

The 3DPM0318-1 is a compact and flexible, Rad Hard by Design, sink/source Termination Regulator for low input voltage, low-noise Double Data Rate (DDR2) memory. The 3DPM0318-1 maintains fast transient response times; offers a remote sensing function; supports control via Command pin and provides all power requirements for DDR2 VTT bus designs.

By incorporating radiation effect mitigation techniques, the 3DPM0318-1 offers SEL/SET LETth of 60 MeV.cm2/mg and a TID of 50krad(Si).

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Source and sink current capability: ±1 A
JEDEC (JESD8-15A) compliant solution
Output voltage (VTT) regulated to VREF_IN
Reference voltage set externally through VREF_IN
Reference voltage buffered inside the module (VREF_OUT)
Remote VTT voltage sensing (VTT_SENSE)
Enable command to place VTT output in high-impedance state (Suspend-to-RAM mode)
Thermal protection
Eliminates the need for external output capacitors
Tightly regulated voltage on VTT output
Radiation hardened design
- Total Ionizing Dose (TID): > 50 krad(Si)
- SEL and SET: > 60 MeV·cm²/mg
Operating temperature: -40 °C to +105 °C
Compact footprint with BGA127 package: 20 × 20 × 7.1 mm

Description

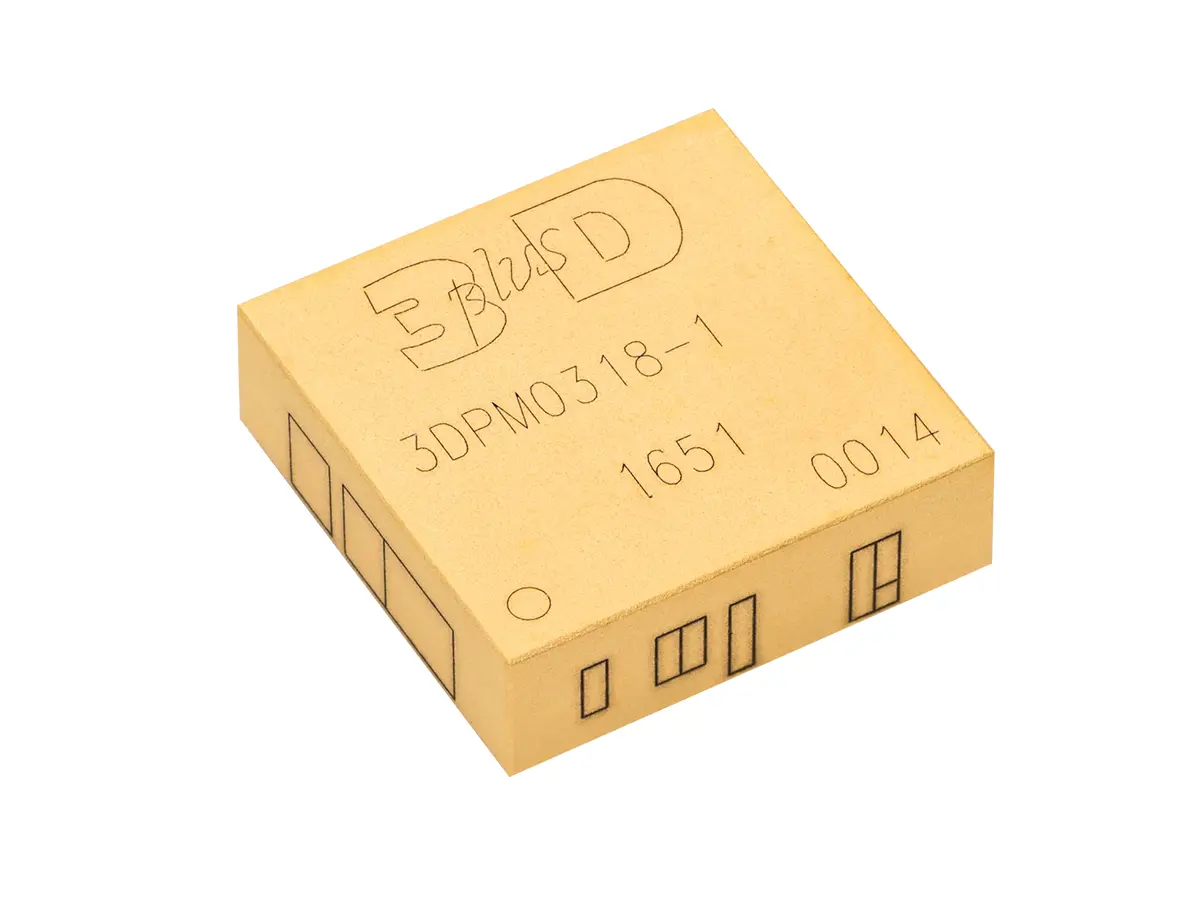

The 3DPM0318-1 is manufactured with 3D PLUS’s space qualified stacking technology designed for high reliability applications, and is available in a compact, low weight 127-pin BGA package.

Space Qualified Termination Regulator for DDR2 memories
