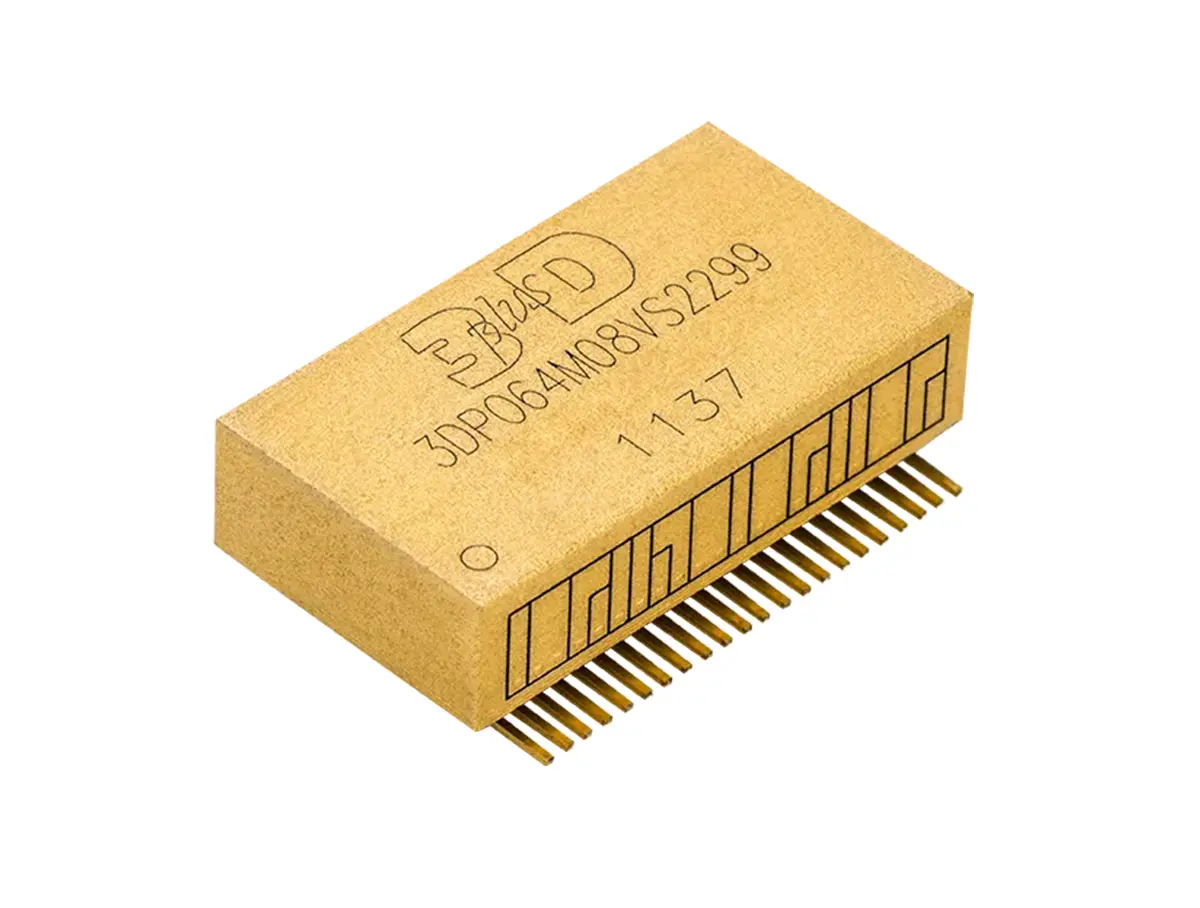

64 Mbit PROM (3DPO64M08VS2299)

Name: 64 Mbit PROM (3DPO64M08VS2299) | MSA Components GmbH
SKU: d266ddefe56a

SKU: d266ddefe56a Categories: RAD HARD / RAD TOLERANT, Memories, PROM Brand: 3D Plus

The 3DPO64M08VS2299 is a 64 Mbit high density Programmable Read Only Memory, which provide an easy to use, integrated four chip containing 16 Mb each.

The 3DPO64M08VS2299 can operate in either serial or byte wide mode. It is a non-volatile one time programmable (OTP) memory designed to store configuration bitstream of FPGA devices.

The memory is guaranteed 20 years life data retention and is also used as processors Boot and Program PROM in a variety of high performance and high reliability computer boards.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

64 Mbit memory density
One Time Programmable (OTP) ROM
Single 3.3 V voltage operation
Maximum frequency: 20 MHz
Simple interface for FPGA configuration
Dual configuration modes:
- Serial
- Parallel
Programmable reset polarity
Chaining capability for storing longer or multiple bitstreams
Data retention: 20 years
Space-qualified product

Radtiation Tolerance

TID > 50 krad (Si) per Spec. 1019.5
Latch-up and SEU immune to LET > 120 MeV/cm²/mg

Description

The module packaged in a SOP 44 is available for Commercial, Industrial or Military temperature range. It is also available with screening options up to space grade level.

Downloads

3D Plus Memory Module P/N Decoder

Manufacturer Info

www.3d-plus.com
