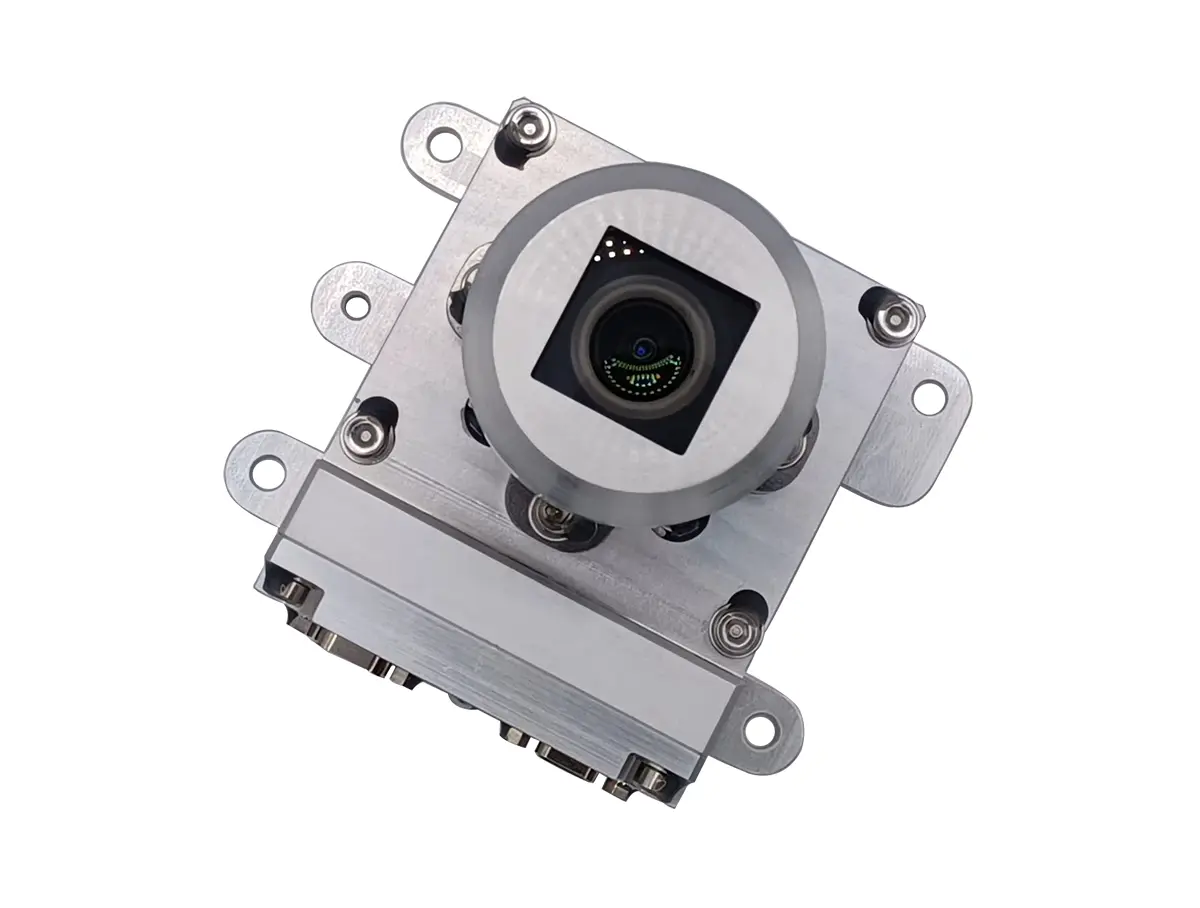

Space Camera IRIS 25mm (3DCS04M250959 (Mono) 3DCS04M250960 (RGB))

Name: Space Camera IRIS 25mm (3DCS04M250959 (Mono) 3DCS04M250960 (RGB)) | MSA Components GmbH
SKU: e521e5efd942

SKU: e521e5efd942 Categories: RAD HARD / RAD TOLERANT, Cameras and Camera Heads, Cameras Brand: 3D Plus

Featuring an 25mm focal length lens and a CASPEX 4M, it offers a 25° field of view (horizontal and vertical). This configuration reuses the mechanical assemblies developed for the MSR-ERO mission in association with a new 25mm focal length optical design, suitable for navigation and tracking application.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Embeds CASPEX space camera heads with heritage in multiple space missions
Standard SpaceWire interface for easy and robust integration into space platforms
Wide range of space-grade optics to support multiple applications
Designed for the space environment with high radiation, temperature, and mechanical performance

P/N: 3DCS04M250959 (Mono), 3DCS04M250960 (RGB)
Focal length: 25 mm
FOV (edge to edge): 25° (H) × 25° (V)
Aperture: F/6
Optical angular resolution: 0.25 mrad
Spectral bandwidth: 450-700 nm
Camera core: CASPEX 4M
Sensor resolution: 4 Mpixels (2048 × 2048)
Integrated processing: Binning, windowing mode
Performance: 2 full frames per second
Interface: SpaceWire
Mass: <400 g
Volume: 86 × 72 × 80 mm³
Power supply: 4.5 to 9 V
Average power consumption (25°C): 1.5 W
Operational temperature: -40 to +55 °C
Environment: LEO, GEO and Deep Space missions

Description

3D PLUS IRIS Space Cameras offer high resolution and high reliability turn-key solution for space applications requiring image capture and monitoring.

Applications

Platform and payload monitoring
Guidance, navigation, and control
Detection, observation, and tracking

More information

Downloads

3D Plus Memory Module P/N Decoder

Manufacturer Info

www.3d-plus.com
