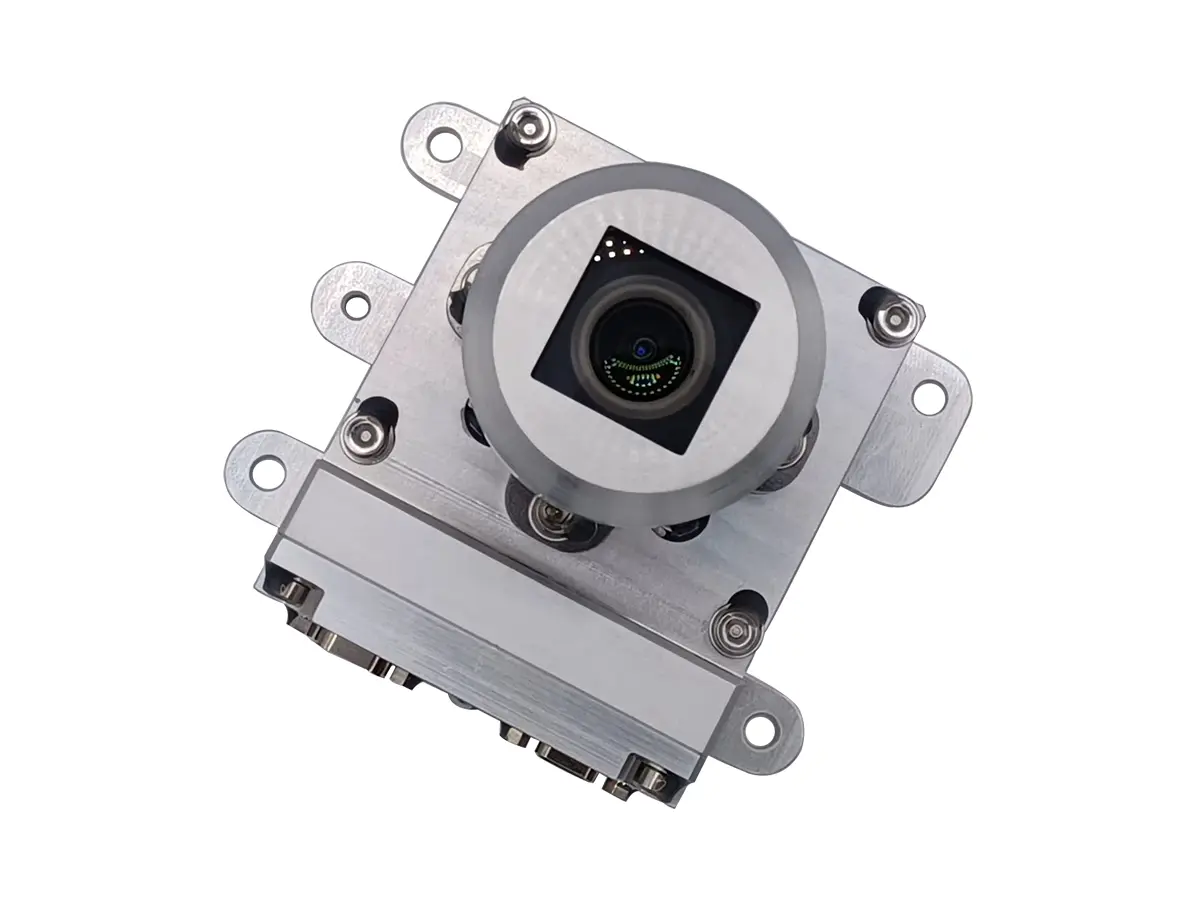

Space Camera IRIS 50mm (3DCS04M500961 (Mono) 3DCS04M500962 (RGB))

• Embeds CASPEX space camera heads with heritage in multiple space missions
• Standard SpaceWire interface for easy and robust integration into space platforms
• Wide range of space-grade optics to support multiple applications
• Designed for the space environment with high radiation, temperature, and mechanical performance

• P/N: 3DCS04M250959 (Mono), 3DCS04M250960 (RGB)
• Focal length: 25 mm
• FOV (edge to edge): 25° (H) × 25° (V)
• Aperture: F/6
• Optical angular resolution: 0.25 mrad
• Spectral bandwidth: 450-700 nm
• Camera core: CASPEX 4M
• Sensor resolution: 4 Mpixels (2048 × 2048)
• Integrated processing: Binning, windowing mode
• Performance: 2 full frames per second
• Interface: SpaceWire
• Mass: <400 g
• Volume: 86 × 72 × 80 mm³
• Power supply: 4.5 to 9 V
• Average power consumption (25°C): 1.5 W
• Operational temperature: -40 to +55 °C
• Environment: LEO, GEO and Deep Space missions

Description

3D PLUS IRIS Space Cameras offer high resolution and high reliability turn-key solution for space applications requiring image capture and monitoring.

Applications

• Platform and payload monitoring
• Guidance, navigation, and control
• Detection, observation, and tracking
