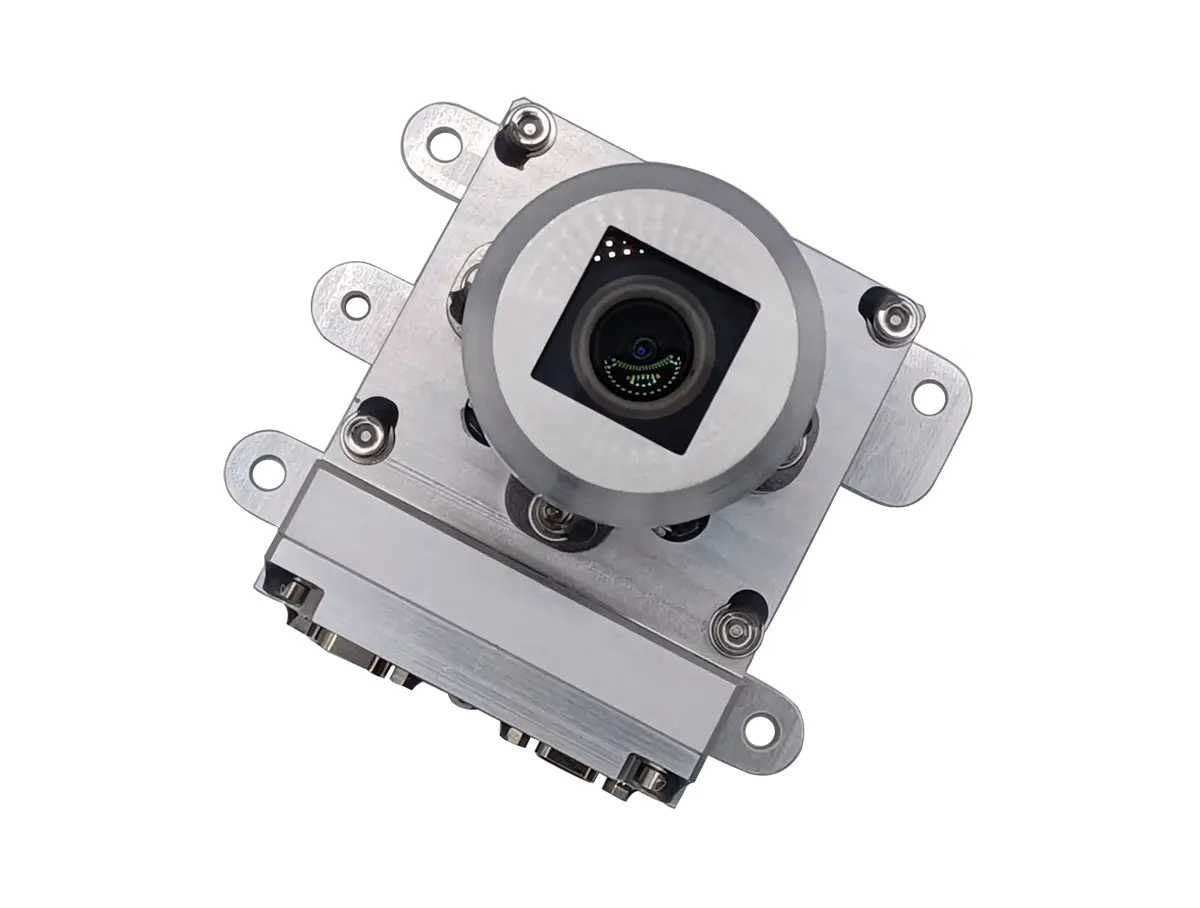

Space Camera IRIS-HD 8mm (3DCS12M080963 (Mono) 3DCS12M080964 (RGB))

Name: Space Camera IRIS-HD 8mm (3DCS12M080963 (Mono) 3DCS12M080964 (RGB)) | MSA Components GmbH
SKU: 8098165d0ca9

SKU: 8098165d0ca9 Categories: RAD HARD / RAD TOLERANT, Cameras and Camera Heads, Cameras Brand: 3D Plus

Equipped with an 8mm focal length lens, it delivers a wide field of view exceeding 100°x70° (horizontal and vertical). This model inherits its design from the MCAM multi-camera monitoring system developed by 3D PLUS under the MSR Earth Return Orbiter program. Using the same 8mm optics from the MMX mission developed for CNES and integrating 3D PLUS CASPEX 12M camera head, it improves the resolution and the overall performances. It offers th capability to capture and transmit compressed video at 30 frame per second in Full HD.

Do you need more details about this product?

If you need detailed information about this product, please call us or send us an email with your contact information. Our team will respond quickly.

Markus Schulte, M.Sc.

Business Developement Manager

+49 2722 6373 20 markus.schulte@msa-components.com

Send inquiry

Embeds CASPEX space camera heads with heritage in multiple space missions
Standard SpaceWire interface for easy and robust integration into space platforms
Wide range of space-grade optics to support multiple applications
Designed for the space environment with high radiation, temperature, and mechanical performance

P/N: 3DCS12M080963 (Mono), 3DCS12M080964 (RGB)
Focal length: 7.9 mm
FOV (edge to edge): 82° (H) × 74° (V)
Aperture: F/8
Optical angular resolution: <1.2 mrad
Spectral bandwidth: 450-700 nm
Camera core: CASPEX 12M
Sensor resolution: 12 Mpixels (4096 × 3000)
Integrated processing: Binning, windowing, H264 compression
Performance: 30 frames per second in Full HD
Interface: SpaceWire
Mass: <800 g
Volume: 90 × 84 × 92 mm³
Power supply: 4.5 to 5.5 V
Average power consumption (25°C): 5 W
Operational temperature: -55 to +55 °C
Environment: LEO, GEO and Deep Space missions

Description

3D PLUS IRIS Space Cameras offer high resolution and high reliability turn-key solution for space applications requiring image capture and monitoring.

Applications

Platform and payload monitoring
Guidance, navigation, and control
Detection, observation, and tracking
